Renewed Vision PRO-EDGE-BLEND-MOD
Edge Blending Module for ProPresenter 4 for Mac ONLY (Electronic Delivery)

OUR PART #  PRO-EDGE-BLEND-MOD

Our Price: $599.00
(Low Price Guarantee)
Qty: Special Order Item


Edge blending is the practice of using two or more projectors to create a single seamless image.  The ability to create visual images on a wider canvas makes for a more compelling visual experience that make people take notice.

Most people think that if you have two projectors and send the left half of an image to one projector and the right half of an image to the other projector, that you can just butt the two projected images next to each other to create a seamless image.  In practice, this doesn't work very well because it is nearly impossible to line the projectors up side by side to form a seamless image.  The seams are visible, and create a distraction for the audience who can see the lines between the two projectors.

"Edge blending" occurs in two steps. The first is called "data doubling" and consists of duplicating content on the projectors used.  Using two projectors as an example, the right edge of the left projector shares the same information with the left edge of the right projector.

The area in which the two projected images overlap is going to be brighter than the areas projected uniquely be each projector, which will create a brighter "hot spot" at the overlap point.  "Feathering the edge"compensates for this: the data-doubled portion of the left projected image is manipulated to gradually fade to black, while the data-doubled portion of the right projected image is gradually faded in from black.

In the past, the process of creating this kind of edge blend required the use of special equipment, such as video scalers or multi-channel video processors. At the low end, this requires an additional investment of around $1,500 per projector. At the high end, you could spend $50,000 or more depending on the quality of the image you are trying to create.

The ProPresenter Edge Blending Module makes use of the Matrox DualHead2Go or TripleHead2Go to output 2 or 3 separate images that have the data-doubling and edge-feathering already done.

The module itself has an easy-to-use interface and takes away a lot of the complex math and calculations usually necessary to accomplish a good edge blend across multiple projectors.

Because the Edge Blending Module makes use of a Matrox DualHead2Go or TripleHead2Go, you are limited to up to 3 projectors at this time.  Projector placement is limited to horizontal at the moment (you cannot create a top, middle, bottom edge blend with the Edge Blending Module).

Also, like any edge blending solution, you cannot create a projected resolution equal to the total output width of the DualHead or TripleHead2Go.  Because of the data doubling, usually 100-250 pixels, your finished image horizontal resolution will be 10%-20% less than the output of the computer itself.

Only two things in ProPresenter cannot be projected using the Edge Blending Module - DVD content played directly from the DVD itself or content using the Web view.  Neither go through the GPU (where the software does it's rendering work) and therefore cannot be manipulated and mapped to this custom resolution.  The DVD issue is due to a limitation placed on us by Apple with regard to Digital Rights Management (DRM) that is not legal to circumvent.  The Web View is displayed using the industry standard WebKit and therefore drawn in a custom window that we're not able to manipulate.

System Requirements: The Edge Blending Module requires a newer video card and machine to run and depends on the combination of hardware and version of the OS X you're running.  Rather than provide a confusing matrix to determine whether a system will work, ProPresenter does this on the fly in the program testing and confirming whether or not the Edge Blending Module will work on that computer.

Renewed Vision PRO-EDGE-BLEND-MOD
Edge Blending Module for ProPresenter 4 for Mac ONLY (Electronic Delivery)

OUR PART #  PRO-EDGE-BLEND-MOD

Product Information:

Edge blending is the practice of using two or more projectors to create a single seamless image.  The ability to create visual images on a wider canvas makes for a more compelling visual experience that make people take notice.

Most people think that if you have two projectors and send the left half of an image to one projector and the right half of an image to the other projector, that you can just butt the two projected images next to each other to create a seamless image.  In practice, this doesn't work very well because it is nearly impossible to line the projectors up side by side to form a seamless image.  The seams are visible, and create a distraction for the audience who can see the lines between the two projectors.

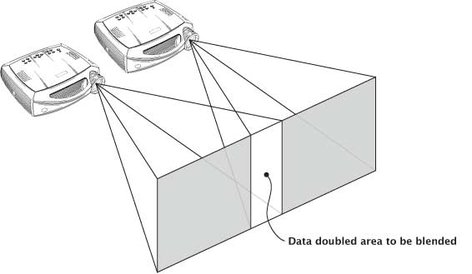

"Edge blending" occurs in two steps. The first is called "data doubling" and consists of duplicating content on the projectors used.  Using two projectors as an example, the right edge of the left projector shares the same information with the left edge of the right projector.

The area in which the two projected images overlap is going to be brighter than the areas projected uniquely be each projector, which will create a brighter "hot spot" at the overlap point.  "Feathering the edge"compensates for this: the data-doubled portion of the left projected image is manipulated to gradually fade to black, while the data-doubled portion of the right projected image is gradually faded in from black.

In the past, the process of creating this kind of edge blend required the use of special equipment, such as video scalers or multi-channel video processors. At the low end, this requires an additional investment of around $1,500 per projector. At the high end, you could spend $50,000 or more depending on the quality of the image you are trying to create.

The ProPresenter Edge Blending Module makes use of the Matrox DualHead2Go or TripleHead2Go to output 2 or 3 separate images that have the data-doubling and edge-feathering already done.

The module itself has an easy-to-use interface and takes away a lot of the complex math and calculations usually necessary to accomplish a good edge blend across multiple projectors.

Because the Edge Blending Module makes use of a Matrox DualHead2Go or TripleHead2Go, you are limited to up to 3 projectors at this time.  Projector placement is limited to horizontal at the moment (you cannot create a top, middle, bottom edge blend with the Edge Blending Module).

Also, like any edge blending solution, you cannot create a projected resolution equal to the total output width of the DualHead or TripleHead2Go.  Because of the data doubling, usually 100-250 pixels, your finished image horizontal resolution will be 10%-20% less than the output of the computer itself.

Only two things in ProPresenter cannot be projected using the Edge Blending Module - DVD content played directly from the DVD itself or content using the Web view.  Neither go through the GPU (where the software does it's rendering work) and therefore cannot be manipulated and mapped to this custom resolution.  The DVD issue is due to a limitation placed on us by Apple with regard to Digital Rights Management (DRM) that is not legal to circumvent.  The Web View is displayed using the industry standard WebKit and therefore drawn in a custom window that we're not able to manipulate.

System Requirements: The Edge Blending Module requires a newer video card and machine to run and depends on the combination of hardware and version of the OS X you're running.  Rather than provide a confusing matrix to determine whether a system will work, ProPresenter does this on the fly in the program testing and confirming whether or not the Edge Blending Module will work on that computer.
