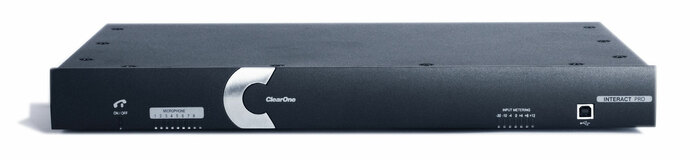

ClearOne 910-154-055
Interact Pro Mixer

OUR PART #:  910-154-055

A professional audio conferencing system offering TRUE stereo echo cancellation at an unbeatable market price.
Learn More
Our Price: $2,995.00
Write the first review.
ClearOne 910-154-055
Qty:
Usually ships in 7-14 business days.

Related Products

A professional audio conferencing system offering TRUE stereo echo cancellation at an unbeatable market price. The INTERACT PRO platform is a complete audio system with unrivalled audio performance and application flexibility- all with simplified configuration in mind. Directly connects to enterprise telephones, PC and HD video conferencing systems and emerging Unified Communications endpoints.

Features:

  • Enables Unified Communication in the conference room
  • USB port connects to PC for Skype, WebEx and other A/V conferencing applications
  • Headset port connects to Cisco, Avaya, and Nortel handsets
  • ClearOne’s HDConference and NEW true stereo AEC provides unrivaled audio quality and intelligibility

    o   Stereo Echo Cancellation for use with HD video conferencing or Telepresence

    o   Distributed Echo Cancellation® effectively eliminates echo

    o   Noise cancellation reduces background noises from fans or HVAC systems

    o   Full-duplex sound enables participants to speak and listen at the same time without cutting in and out

    o   Automatic level controls keep participants’ audio balanced and consistent

    o   First-mic priority eliminates hollow “tunnel” sound by activating only the microphone closest to the person speaking

  • Add INTERACT Pro 8i for up to 16 microphones

  • Integral network management system enables remote configuration, control and monitoring

  • Scalable and flexible to meet most conferencing needs

    o   Wireless or wired controller option

    o   Add INTERACT Tabletop Dialer for room control

    o   Add INTERACT COM for direct interface to PC or enterprise telephone sets

  • Interoperates with NetStreams™ A/V over IP systems

  • Easy to install, program and use

Specifications:

Audio Performance:

Conditions: Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz BW limit (No Weighting)

  • Frequency Response: 20 Hz to 22 kHz BW, Max Gain
  • Noise (EIN): -124 dBu, 22 kHz BW, Max Gain,
  • Rs = 150 O THD+N: < 0.02%
  • Dynamic Range: 100 dB (non A-weighted)
  • Crosstalk: < -91 dB rel 17 dBu
  • Sampling Rate: 48 kHz
  • A/D - D/A Converters 24-bit

Auto Mixer Parameters

  • Number of Open Microphones (NOM)
  • PA Adaptive Mode
  • First Mic Priority Mode
  • Last Mic Mode
  • Maximum # of Mics Mode
  • Ambient Level
  • Gate Threshold Adjust
  • Off Attenuation Adjust
  • Hold Time
  • Decay Rate

Matrix Mixing Parameters

  • 8 Mic/Line Analog Inputs
  • 2 Line Inputs
  • 8 Line Outputs
  • 8 Line Mic/Line in Expansion with Optional INTERACT Pro 8i
  • 3 Assignable Processing Blocks IN/OUT

Microphone Input Parameters

  • Input Gain Adjust
  • Mic or Line Level
  • Phantom Power ON/OFF
  • Echo Cancellation ON/OFF
  • Noise Cancellation ON/OFF
  • PEQ
  • Filters
  • Mute ON/OFF
  • Chairman Override ON/OFF
  • AGC ON/OFF
  • Automatic Level Control ON/OFF
  • Auto Gate/Manual Gate
  • Adaptive Ambient ON/OFF

Assignable Processing Blocks

  • Channels: 3
  • Filter Nodes: 4 Per Channel
  • Filter Types: All Pass, Low Pass, High Pass,
  • Low Shelving, High Shelving, PEQ, Notch
  • Compressor: 1 Per Channel

Mic/Line Inputs 1-8

  • Impedance: 5 kO Per Leg or 10 kO Balanced
  • Maximum Level: -65 dBu to +17 dBu
  • Echo Cancellation:
  • 128 ms Tail Time (Works with 12 dB of Room Gain)
  • Phantom Power: 24 VDC at 10 mA

Line Inputs 9-10

  • Impedance: 5 kO Per Leg or 10 kO Balanced
  • Maximum Level: 17 dBu

Line Outputs 1-8

  • Impedance: 50 O Per Leg
  • Nominal Level: 0 dBu
  • Maximum Level: 17 dBu

Telephone Interface

Telephone Audio Performance:

Conditions: Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled

  • Frequency Response: 250 Hz to 3.3 kHz ±1dB
  • THD+N: < 0.30% re-max level 250 Hz to 3.3 kHz
  • SNR: > 62 dB re-max level
  • Telco Line Echo Cancellation
  • Tail Time: 32 ms
  • Null: 55 dB Nominal
  • Telephone Noise Cancellation
  • Noise Cancellation 6-15 dB Attenuation

RS-232 Control Port

  • DB9 female
  • Baud Rates: 9,600 / 19,200 / 38,400 /
  • 57,600 (default) / 115,200
  • Protocol: 8-bit / 1 Stop / No Parity
  • Hardware Flow Control ON(Default)/OFF

USB Configuration Port

  • USB 2.0 Compatible
  • Type: B Connector

LAN

  • 10/100 Ethernet
  • RJ-45 with Activity LED
  • Supports: Telnet, HTTP

Expansion Bus In/Out

  • Cable: CAT5 Twisted Pair, Solid Conductor
  • Maximum Cable Length:

    o   Between INTERACT Pro & INTERACT Pro 8i: 80 feet

    o   Between INTERACT Pro/Pro 8i & INTERACT COM: 80 feet



Configuration Software

  • INTERACT Supports: Microsoft XP, Vista and Windows 7
