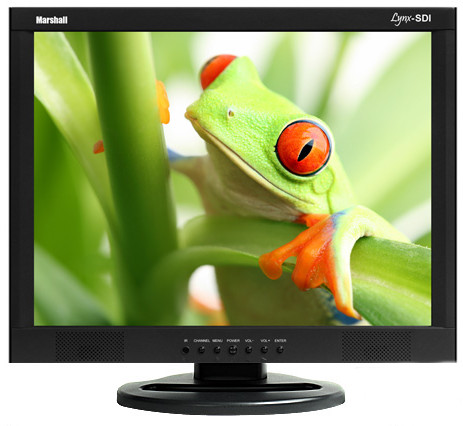

Marshall Electronics M-LYNX-19SDI [RESTOCK ITEM]
19" LCD Monitor with SD/SDI BNC Loop Through

OUR PART #:  M-LYNX-19SDI-RST-01

The Marshall Electronics M-Lynx-19SDI offers a stunning 1280 x 1024 resolution picture, making it the perfect choice for audio/visual, security and industrial applications.
Learn More
Our Price: $1,479.00
List Price: $1,789.00
Call for Special Sale Price!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics M-LYNX-19SDI [RESTOCK ITEM]
Qty:
In Stock

Similar Products

The Marshall Electronics M-Lynx-19SDI offers a stunning 1280 x 1024 resolution picture, making it the perfect choice for audio/visual, security and industrial applications. This universal monitor delivers a crystal clear high definition picture and includes advanced video technologies such as 3D dynamic digital compensation, RGB digital phase lock, and 3D comb filter.  Additional features include auto-clock frequency phase correction, built-in speakers and a user-friendly OSD.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

Marshall Electronics M-LYNX-19 Features:

  • 19" 5:4 LCD Monitor
  • Brightness: 450cd/m²
  • Contrast: 700:1
  • Inputs: Composite, VGA, DVI, SDI
  • 3D Comb Filter
  • Dynamic Noise Reduction
  • Wide Viewing Angles

Marshall Electronics M-LYNX-19 Specifications:

  • Panel:
    • Panel Size: 19"
    • Diagonal Resolution: 1280 x 1024
    • Aspect Ratio: 5:4
    • Type: LCD
    • Panel Brightness: 400 cd/m²
    • Contrast: 700:1
    • Color Gamut: YUV, RGB
    • Viewing Angles (CR>=10): 178° / 178°
    • Backlight type: LED
  • Features:
    • Video Formats: NTSC/PAL/SDI
    • Loss of Input Curtain: Yes
    • Self-Sensing: Yes
    • Re-clocked/Re-Shaped: Yes
  • Input Connectors:
    • CVBS x2: Yes
    • SDI x2: Yes
    • VGA: Yes
    • DVI-I: Yes
  • Output Connectors:
    • CVBS: Yes
    • SDI: Yes
  • Audio Input/Output:
    • Audio 1, Audio 2, Audio 3: Yes
  • Controls:
    • Input Status Display: Yes
    • Controls on front Panel: Yes
    • User-Defined Function Buttons: Yes
    • Desk Top/Rack Ears: Yes
  • Power:
    • Voltage: AC100V ~ 230V 50 ~60Hz
    • Consumption Max: 40W
    • Power Switch: Yes
  • Compliance: CE approved
  • Operating Temperature: 0° C ~ 40° C
  • Dimensions: 18" x 14.6" x 3"
  • Weight (Main Body): 14.8 lbs
  • Vesa Mount: 75/100 mm
