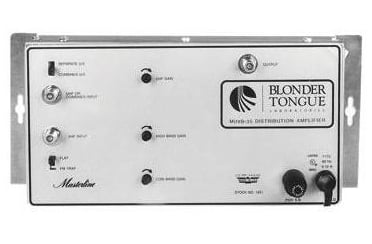

Blonder-Tongue MUVB-35
Amp Broadband VHF/FM/UHF 1451

OUR PART #:  MUVB-35

The Masterline® Series of distribution amplifiers are designed for MATV off-air applications.
Learn More
Our Price: $182.40
List Price: $190.00
Write the first review.
Blonder-Tongue MUVB-35
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Masterline® Series of distribution amplifiers are designed for MATV off-air applications. These amplifiers are used for off-air VHF, FM and UHF applications, providing high output and low noise amplification. The Masterline® Series products are available with a choice of gain levels, bandwidths, and features to fit almost any system, i.e. number of outlets serviced by the system, the array of off-air channels present, and the signal strength of those signals. The Masterline® Series uses split band amplification, combined with low noise input circuitry, to provide a wide dynamic range and exceptional output capability.

Features:

  • VHF and UHF/VHF models
  • High output capability
  • Switchable FM Traps for strong local FM signals
  • AC convenience outlet provided on most models
  • Lightning and surge-protected

Specifications:

RF

  • Frequency Range (MHz)

    o   VHF LB (2-6):  54-88

    o   FM:  88-108

    o   VHF HB (7-13):  174-216

    o   UHF (14-69): 470-890

  • Gain (dB)

    o   VHF LB (2-6) & FM: 36

    o   VHF HB (7-13): 35

    o   UHF (14-69): 37

  • Noise Figure (dB)

    o   VHF LB (2-6) & FM: 6

    o   VHF HB (7-13):  7

    o   UHF (14-69): 6.2

    Output Level - Max (dBmV) (a)

    o   VHF LB (2-6):  49

    o   VHF HB (7-13): 49

    o   UHF (14-69): 49

  • Gain Control Range (dB):  18

  • Impedance - All Ports (Ohms): 75

Power Requirements:

  • Voltage (VAC):  117, ±10%
  • Frequency (Hz):  60
  • AC Convenience Outlet:  NA
  • Temperature Range (°C): 0 to +50

Controls (Top Panel):

  • Gain

    o   LB VHF/FM/MB VHF: Control

    o   HB VHF: Control

    o   UHF: Control

  • FM Trap IN/OUT: Slide Switch

  • Separate/Combined LB/HB VHF: n/a

  • Separate/Combined U/V: Slide Switch

Mechanical

  • Dimensions (LxWxD): 11.88 x 5.22 x 1.75 in. (302 x 133 x 44 mm)
  • Weight: 3.25 lbs., 1.48 kg
