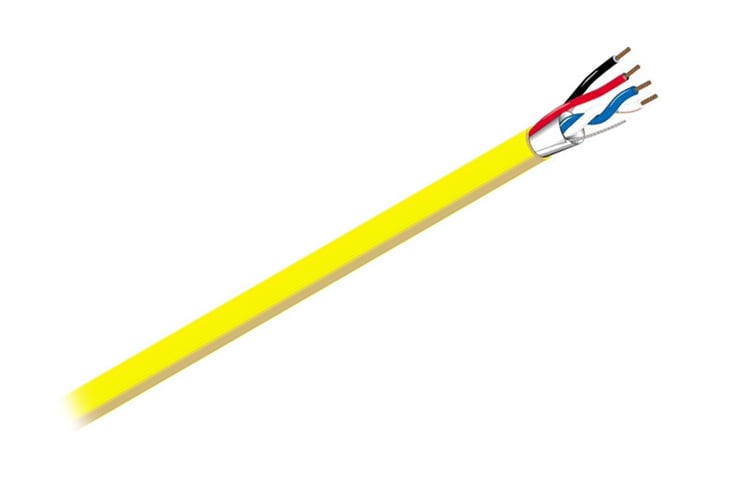

West Penn 77350
500 ft of Media Control Cable

OUR PART #:  77350-500

West Penn's 77350 media control cable is/features 22/2 Shielded, 18/2 Unshielded Stranded bare copper conductors with an overall jacket.
Learn More
Our Price: $154.88
List Price: $255.12
You save 39%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 77350
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

West Penn's 77350 media control cable is/features 22/2 Shielded, 18/2 Unshielded Stranded bare copper conductors with an overall jacket.

West Penn 77350 Specifications:

  • NEC Rating: CMR, NEC Article 800
  • Approvals: (UL)- C(UL) or c(ETL)us
  • Applications: Indoor data cable for: Home Control Systems, Intercom Systems, Security Systems, Sound, Audio.
  • Construction Parameters:
    • Conductor: 22, 18 AWG Bare Copper
    • Stranding: 7x30, 7x26
    • Insulation Material: Foam Polyethylene Data Pair, PVC Control Pair
    • Insulation Thickness: 0.025" Data Pair, 0.010" Control Pair Nom.
    • Number of Conductors: 4 (2 Shielded) (2 Unshielded)
    • Shield: 100% Aluminum Polyester Foil
    • Drain: Stranded Tinned Copper
    • Jacket Material: PVC
    • Jacket Thickness: 0.030" Nom.
    • Overall Cable Diameter: 0.255" Nom.
    • Approximate Cable Weight: 23 lbs/1M' Nom.
    • Flame Rating: UL 1666 Riser Flame Test
  • Electrical & Environmental Properties:
    • Temperature Rating: -20deg C to 60deg C
    • Operating Voltage: 300 V RMS
    • Max. Capacitance Between Conductors @ 1 KHz: 12.5 pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 KHz: 22.5 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C:
      • 17 Ohms/1M' Nom. Data Pair
      • 6.2 Ohms/1M' Nom. Control Pair
    • Impedance –Nominal 22AWG Pair: 100 Ohms. Nominal
    • Insulation Colors:
      • 1. Blue/White (Data Pair)
      • 2. Red/Black (Control Pair)
    • Jacket Color: Yellow
