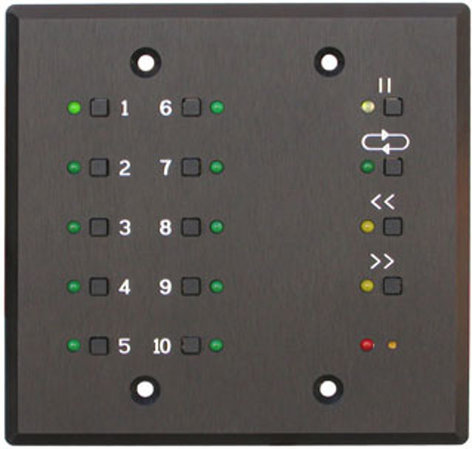

Doug Fleenor Design RERUN-A 10-Button 2 Gang Wall Mounted DMX Controller, Streaming Recorder

The Doug Fleenor Designs Rerun-A is an architectural lighting control station capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The Rerun-A system can work in conjunction with a lighting console, automatically switching between recorded shows and console control. When the console generates DMX512 the Rerun-A retransmits the incoming DMX512 data, thus the console operates normally. Upon loss of DMX512 from the console, the Rerun-A will start its previous show. The show start and end points may be trimmed non-destructively, and each show can be set to hold the last look, loop to itself, or link to another show.

The solid aluminum faceplate is designed to install over a standard two-gang electrical box. Single-gang remote stations can be added to remotely select shows. Power for the Rerun-A can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer.

Doug Fleenor Designs RERUN-A Lighting Controller Specifications:

• Input: DMX512 (3-wire)
• Output: DMX512 (3-wire)
• Power Requirements: 10-15 volts AC or DC / 150mA per station
