Manfrotto MVH502A 502 Fluid Video Head with 75mm Half Ball

OUR PART #: MVH502A

Copied to clipboard

The Manfrotto MVH502A offers full smoothness control while shooting thanks to its variable fluid mechanisms. ...Read more

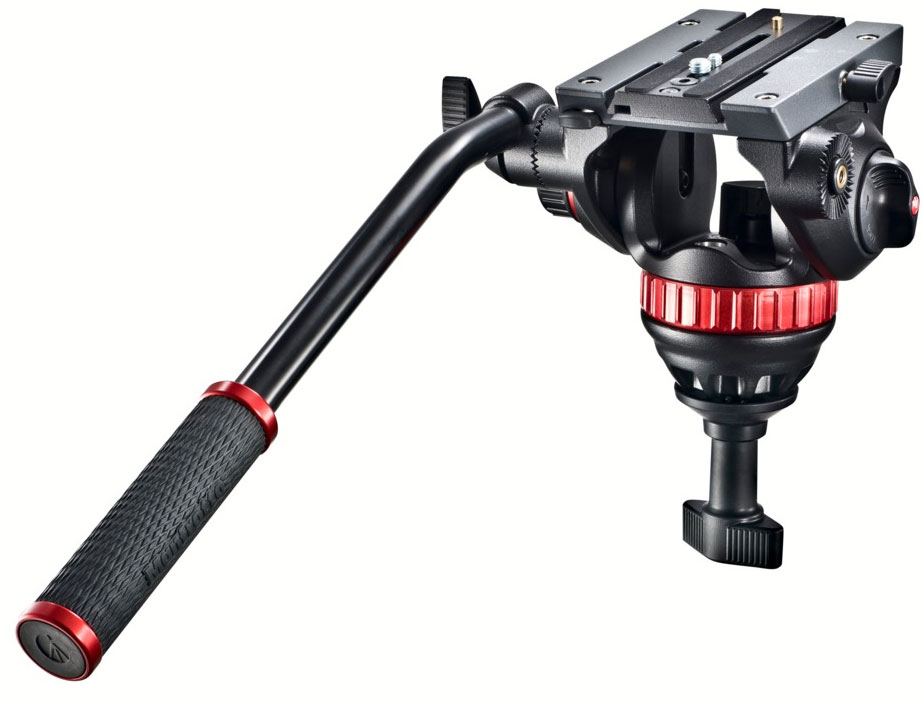

Manfrotto MVH502A 502 Fluid Video Head With 75mm Half Ball Image 1
EZNvbqq3V0I
1 Video
Manfrotto MVH502A 502 Fluid Video Head With 75mm Half Ball
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

The Manfrotto MVH502A offers full smoothness control while shooting thanks to its variable fluid mechanisms. It is ideal for use with the latest camcorders and HDSLR cameras supplied with external accessories (8.8 lbs max capacity with Ø75mm half ball connection).

Manfrotto MVH502A Specifications:

  • Attachment to Camera: 1/4" and 3/8"
  • Attachment to Tripod: Ø75mm half ball connection
  • Balance Control: one fix spring for 8.8 lbs (4 kg) camera weight
  • Center of Gravity: 2.16" (55 mm)
  • Bubble Spirit Level (No.): 1
  • Color: black
  • Front Tilt: -80° / +90° tilt range
  • Head Bowl: 75mm
  • Independent Pan Lock: yes
  • Independent Tilt Lock: yes
  • Material: aluminum
  • Maximum Working Temperature: 140°F (60°C)
  • Minimum Working Temperature: -4°F (-20°C)
  • Pan Bar Positions: 2
  • Pan Bars Included (No.): 1
  • Pan Drag: continuously adjustable from 0 to max level
  • Panoramic Rotation: 360°
  • Plate Type: 504PLONG
  • Quick Release: yes
  • Safety Payload Weight: 15.4 lbs (7 kg)
  • Secondary Safety System: yes
  • Sliding Travel of Plate: 3.27" (83 mm)
  • Spring Loaded Counter Balance: yes
  • Counterbalanced Payload: 8.8 lbs (4 kg)
  • Tilt Drag: continuously adjustable from 0 to max level
  • Load Capacity: 8.82 lbs (4 kg)
  • Weight: 3.5 lbs (1.6 kg)
  • Working Height: 5.91" (15 cm)

Note

NOTE: This head attaches to a tripod via Ø75mm half ball connection, for a 3/8" attachment see MVH502AH.
