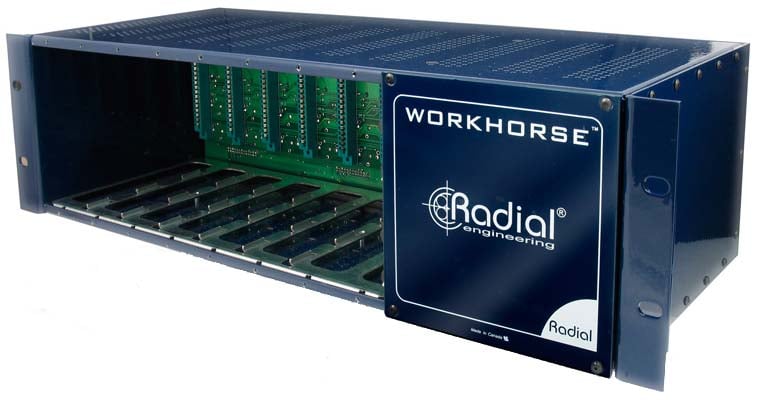

Radial Engineering WR8 Rack 8-Slot Power-Rack, 19" 3RU, 1600 Ma Power Supply

If you're a fan of Radial's TEC Award-winning Workhorse 8-channel 500 series power rack, but don't have a need for it's summing mixer, the Radial WR-8 is for you. It gives you all the same features minus the mixer, though you can upgrade at any time by installing the Radial WM8 (sold separately).

Radial Engineering's Workhorse WR-8 is an 8-slot 500 series power rack that is 100% compatible with all standard 500 series modules. Individual XLR inputs and outputs are complimented with parallel 1/4" TRS connectors and Pro-Tools compatible 25 pin D-Subs. This enables any of the 8 module slots to be easily integrated within the framework of today's popular digital workstation environment. A special feed function also enables modules to be connected in series without having to hard patch using a cable.

Rear panel connectivity is extensive: Each channel is equipped with traditional XLR input and output. This is augmented with 1/4" TRS jacks for balanced or unbalanced connectivity. A special Omniport™ jack delivers module-specific functionality that can range from an extra output, ducking input or effects insert depending on the module design. The Workhorse comes ProTools™-ready with 8-channel D-subs for the inputs and outputs plus third D-Sub gives you access to the built-in main summing outputs (augmented by the aformentioned WM8 upgrade). Powering concerns are addressed with a unique 'pooled' supply that shares 1600 milliamps of current between the available 8 slots. This allows high current demand modules to exceed the usual limitations of other 500 series racks without the worry of brown outs.

Features

• 500 series power rack with room for 8 modules
• Upgrades to full Workhorse with optional mixer
• 100% compatible with older API-type racks
• Over 20% more current that the original spec

Specifications

• Audio Circuit Type: Connection bus from modules to connectors
• Features: Phantom power, OmniPort
• Input Connectors: 8 x XLR male, 1/4" TRS, 25-pin D-sub
• Output Connectors: 8 x XLR female, 1/4" TRS, 25-pin D-sub
• Extras: Adheres to the Whos-Doc and VPR Alliance
• Power: External 100V - 240V AC with +48V phantom
  • Available Current for Slots: 1600mA
• Conditions: For use in dry locations only, 5-40°C
• Dimensions: 5.25" x 19" x 7.44"
• Weight: 12.4 lbs (5.6 kg)
