Product Overview

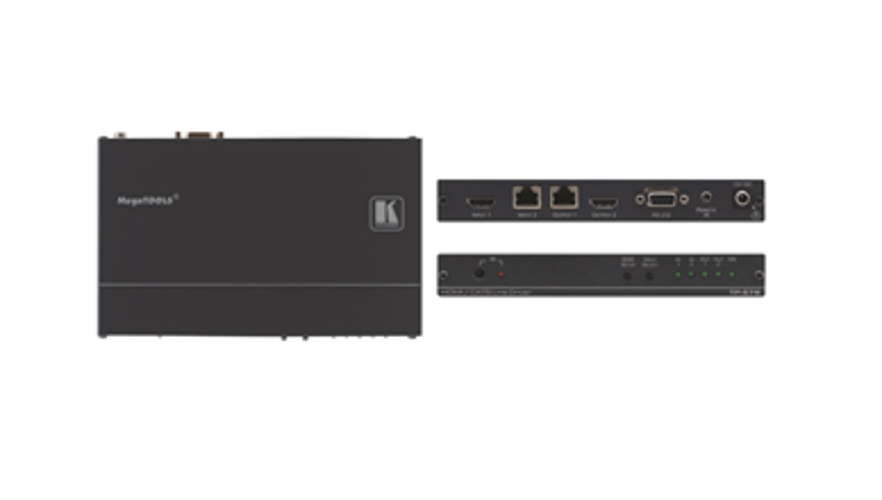

The TP-576 is a DGKat™ twisted pair line driver for HDMI, bidirectional RS-232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS-232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver.
Features
- Max data rate - 1.65Gbps per graphic channel.
- HDTV compatible
- HDCP compliant
- DGKat signal integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- HDMI support - HDMI (V.1.4 with Deep Color (on the HDMI input), x.v.Color™, HDMI Uncompressed Audio Channels, Dolby True HD,DTS-HD).
- 3D pass-through
- EDID pass-through - Passes EDID signals from source to display
- HPD pass-through - Passes hot plug detect signals from display to source
- Active input/output LED indicators
- System range - Up to 90m (295ft) at 1080i, or up to30m (98ft) at 1080p on shielded BC-DG Kat524 cable. Up to 90m (295ft) at 1080i,or up to 70m (230ft) at 1080p on shielded BC-DG Kat623 cable. Up to 100m(330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DG Kat7a23 cable.
- Cable - For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Flexible control - Front panel, RS-232 & IR switching
- Power connect system - A single connection to theTP-576 powers the transmitter, receiver and line driver units.
- Compact MegaTOOLS - 2 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-T2B universal rack adapter.
Specifications
- Inputs: 1 HDMI connector; 1 CAT 5 on an RJ-45connector.
- Outputs: 1 CAT 5 on an RJ-45 connector; 1 HDMIconnector.
- Ports: 1 bidirectional IR port on a 3.5mm mini jack, 1bidirectional RS 232 port on a 9-pin D-sub connector (for local control).
- Bandwidth: Supports up to 1.65Gbps bandwidth pergraphic channel.
- Compliance with HDMI standard: Supports HDMI and HDCP
- RS-232 baud rate: Up to 38.4kbps
- Controls: EDID SETUP button, input select button
- Indicator LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs.
- Dimensions: 4.76" x 2.83" x 0.95"
