Sierra Video Systems 1608V3SXL
Switcher 16x8, 3 Channel Video, Stereo Audio, 6RU

OUR PART #:  1608V3SXL

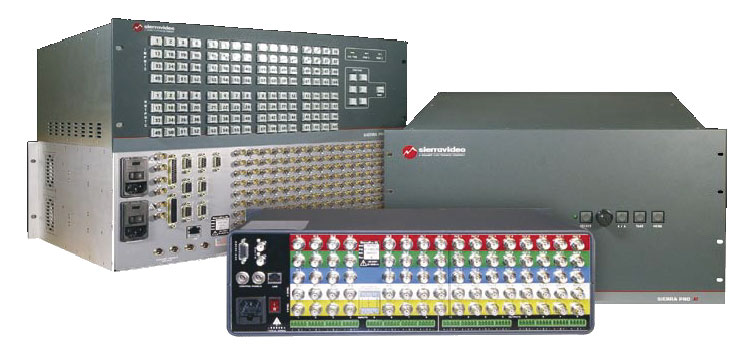

Note : Image is for illustrative purposes and may not be the exact representation of this model.
Learn More
Our Price: $5,150.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Sierra Video Systems 1608V3SXL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Note: Image is for illustrative purposes and may not be the exact representation of this model.

The improved design of the Sierra Pro XL 1608V allows for higher bandwidth routing with very low crosstalk. Depopulated from the 1616V, this 6RU (10.5") frame allows control of multiple signal types including composite, S-Video, YUV, RGBS, RGBHV, Y/C, and analog HD. The Sierra Pro XL system accommodates balanced or un-balanced audio, AFV, or Breakaway split routing allowing for RGB muting for enhanced performance with projectors and displays. IP control, RS-232 serial control and a front local control panel are standard. Remote control options are available.


  • 450MHz bandwidth at -3dB with very low crosstalk
  • Up to and exceeding 1600 x 1200 @ 75Hz resolution capability
  • Matrix Mapping Universal Breakaway™ Switching for multi-format use
  • Adjustable audio gain and attenuation with no zipper effect
  • Video Follow Sync™ Switching design eliminates glitches during switching
  • Room grouping of inputs for flexible configuration in multi-room applications
  • Plug-in boards for flexible frame signal configuration by the factory
  • Color coded rear panel
  • Front panel control Interface with LCD display
  • IP and RS-232 control
  • Full range of remote control panels available
  • Redundant power supplies available.


Wideband Video

  • Bandwidth: 450MHz @ -3dB
    -Video Gain: Unity
    -Crosstalk: -80dB @ 1MHz, 47dB @ 100MHz, -30dB @ 150MHz
    -Switching Speed: deterministic
  • Input
    -Video Level: 0.2V to 5V p-p
    -Impedance: 75 Ohm
    -Return Loss: < -30dB @ 5MHz
    -Connector Type: BNC
  • Output
    -Video Level: 0.2V to 5V p-p
    -Impedance: 75 Ohm
    -Return Loss: < -30dB @ 5MHz
    -Connector Type: BNC

Analog Stereo Audio

  • Input Adjust Range: +20.5dB to -8dB
  • Output Adjust Range: +15dB to -59.5dB and fully off (MUTE)
  • Frequency Response: 20Hz to 20KHz +/- 0.5dB (typical -3dB @ 120KHz) (unity gain)
  • Dynamic Range: 96 dB (20-20KHz unweighted) (unity gain)
  • Crosstalk (all inputs hostile): < -80dB @ 1KHz (unity gain), < -60dB @ 10KHz (unity gain)
  • THD (20 to 20 KHz): < 0.025% (20Hz - 20Khz @ +4dBu) (unity gain)
  • IM (20 to 20 KHz): < 0.025 SMPTE-DIN @ +4dBu (unity gain), < 0.01% CCIF @ +16dBu (unity gain)


  • Maximum Source Level: +24dBu
  • Impedance: > 20K
  • Connector Type: 5 pin terminal block for balanced or unbalanced operation


  • Maximum Source Level: +24dBu balanced, +18dBu unbalanced
  • Impedance: < 50 Ohm
  • Connector Type: 5 pin terminal block for balanced or unbalanced operation


  • Serial: General Purpose 9 pin-D, each switchable RS-232 or RS-422, 2 on 32x32 models, 1 on all others, 9600, 38400, 115200 baud
  • Serial Protocols: SVS host, simple Kramer, and select others
  • Ethernet: 10/100 Base-T, full duplex, RJ-45 connector
  • Ethernet Protocols: ARP, ICMP, TCP/IP, Telnet, HTTP
  • Web Server: For configuration and control
  • Redundant Control Processor: N/A
  • Control Panels: Supports SCP programmable control panels, XY & single bus control panels


  • 8x & 12x: 19”w x 5.25”h x 13”d
  • 16x: 19”w x 10.5”h x 19”d
  • 32x video only: 19”w x 15.75”h x 19”d
  • 32x audio only: 19”w x 5.25”h x 19”d
  • Mounts in standard 19” rack
  • Depth measurements do not include front panel hardware or rear cabling


  • 8x & 12x: 3RU (Rack Unit Size/Frame)
  • 16x: 6RU (Rack Unit Size/Frame)
  • 32x video only: 9RU (Rack Unit Size/Frame)
  • 32x audio only: 3RU (Rack Unit Size/Frame)
  • Power: 90 VAC->240 VAC 50/60 HZ (<150 Watts) auto-detecting
  • Redundant Power Supply: Optional in Series 16, standard in Series 32
  • Storage Temperature: -40 to +150 degrees F
  • Operating Temperature: 30 degrees to 100 degrees F ambient
  • Humidity: 10% to 90 % non-condensing
