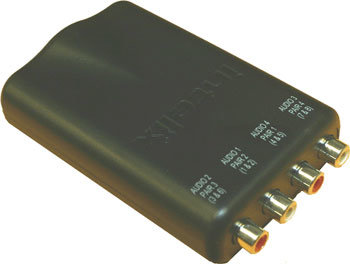

Intelix AVO-A4-F
4 Mono or 2 Stereo A/V Balun

OUR PART #:  AVO-A4-F

The Intelix AVO-A4 balun transmits four mono or two stereo analog audio signals via standard structured cabling, such as Cat 5.
Learn More
Our Price: $104.22
List Price: $115.80
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-A4-F
Qty:
In Stock

Similar Products

The Intelix AVO-A4 balun transmits four mono or two stereo analog audio signals via standard structured cabling, such as Cat 5.  Used in pairs, the AVO-A4 transmits analog audio in either direction up to 2,500 feet and is ideal for corporate A/V, churches, schools, auditoriums, and almost any other situation involving audio distribution.

Intelix AVO-A4-F Balun Specifications:

  • Max Distance: 2,500 feet
  • Bandwidth: 20 Hz to 20 kHz
  • Impedance: 600 ohms, unbalanced
  • Isolation: 500 V
  • Nominal Level: 1.0 volts
  • Insertion Loss: 1dB
  • Common Mode Rejection: Greater than 40dB
  • Unshielded Twisted Pair Cablings Specs:
    Max capacitance:20pf/ft
    Impedance: 100 ohms @ 1 MHz
    Attenuation: 6.6 dB/1000 ft @ 1MHz
    Cat 5, Cat 5e, Cat 6, Cat 7 compatible
  • Connectors: Four (4) female RCA to one (1) RJ45
  • Dimensions: 4.3 x 2.5 x 1 inches
