Product Overview

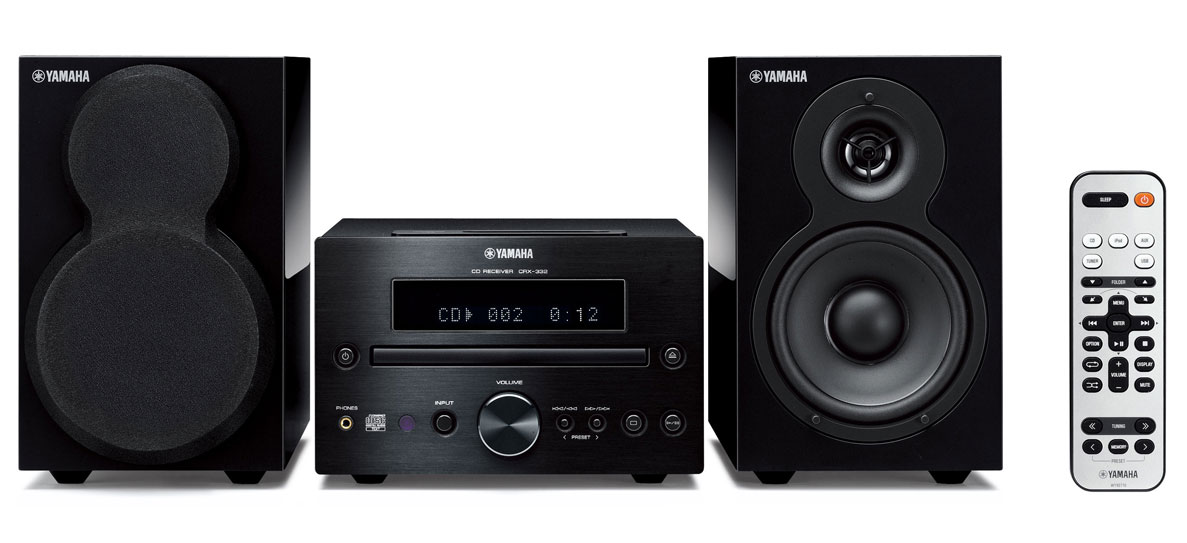

The MCR-332 is an executive style mini-system featuring iPhone, iPod and iPad compatibility among other advanced features bundled with a pair of elegant piano black finish speakers.
Features:
- Superior Sound that Lives up to the Standards of the PianoCraft Series
- New-design, high sound quality 2-way bass reflex speakers
- VCCS technology
- Large-size, screw type speaker terminals on receiver and speakers
- iPod, iPhone and iPad compatibility
- Speaker cabinet has luxurious piano-like finish
- Front panel and knobs have aluminum hairline finish
- Superior Sound that Lives up to the Standards of the PianoCraft Series - The foundation of the MCR-332’s excellent audio performance is a Yamaha-developed digital amp that provides smooth, unforced sound output. The receiver’s separate digital and analog low-noise circuitry ensures thoroughly high sound quality, which is delivered by new-design speakers.
- Digital USB Connection for iPad and Other USB Devices - A USB terminal on the top of the unit makes it quick and easy to plug in an iPad or other USB device. The digital connection permits fast, loss-free signal transmission.
- Dock digital connection for iPod, iPhone - The iPhone/iPod dedicated dock provides a digital connection, which means that the digital signal from the iPhone/iPod is transmitted directly to the receiver. This minimizes noise interference and allows use of the MCR-332 DAC, rather than the /iPhone/iPod DAC, resulting in more precise sound reproduction.
- Front Panel and Knobs Have Aluminum Hairline Finish - The aluminum hairline finish of the front panel and knobs also contributes to the over high class appearance of the system.
- Luxurious Piano-Like Finish and Removable Speaker Grilles - Drawing on decades of experience creating fine pianos, Yamaha gives its speakers a beautiful piano-like finish that looks elegant in any setting. The speaker grilles are also designed for good looks, but can be removed for a more basic appearance.
- New-Design, High Sound Quality 2-way Bass Reflex Speakers - The 2-way bass reflex speakers use new-design 4-3/8” woofer units, have deep cabinets and are supported by three legs that prevent external vibrations from affecting the sound. The result is powerfully resonant bass and rich mid-range and treble, so you enjoy high sound quality with good imaging.
- VCCS Technology Ensures that the Speakers Accurately Reproduce the Sound from the Main Unit - Speaker cabinets vibrate, degrading sound quality. To overcome this, Yamaha drew upon its musical instrument manufacturing expertise to develop an internal structure called VCCS (Vibration Control Cabinet Structure), which uses strategically placed pieces of a composite material that provides excellent vibration isolation performance.
- Large-size, Screw Type Speaker Terminals - Both receiver and speakers use these large terminals to ensure high quality, reliable connection.
- Subwoofer Output and AUX-in Terminals - The subwoofer out terminals lets you connect a subwoofer to enjoy enhanced bass power and response. The AUX-in terminal allows connection of other audio components.
- New Style Remote Control - The remote control has a simplified design that makes it extremely easy to use.
- Notable Features: FM/AM Tuner with Preset Tuning/ CD-text compatibility
Specifications:
- Amplifier Section Maximum Output Power (1 kHz) 20 W + 20 W (6ohms, 10% THD)
- Total Harmonic Distortion 0.04% (CD etc. 1 kHz/8 W)
- Extensive Connection iPod Dock Integrated iPod Dock
- Supported Apple Devices via Integrated Dock iPod classic, iPod nano(2nd generation and later), iPod touch, iPhone
- USB Input iPad/iPod/iPhone, USB Memory, Portable Audio Player
- Supported Apple Devices via USB iPad, iPod classic, iPod nano (2ndgeneration and later), iPod touch, iPhone
- USB Audio format MP3, WMA
- Analog Audio Input/Output 3.5 mm (1/8") Stereo mini input
- Preout Subwoofer
- Headphone Output 1
- Optical Drive Section Type Single Disc CD Player
- Media CD, CD-R/RW
- Audio formats Audio CD, MP3, WMA
- Tuner Section FM/AM Tuner Yes
- Tuner Presets 30 FM / 30 AM
- General Power Consumption 32 W
- Standby Power Consumption (IR only) 0.3 W or less
- Dimensions (W x H x D) 7-1/8" × 4-5/8" × 12-1/2"
- Weight 6.5 lbs.
- Speakers
- Model NS-BP111PN
- Speaker Finish Piano Black
- Cabinet Type Wood with Large-size, Screw Type Speaker Terminals
- Speaker Type 2-way bass-reflex
- Removable Grill Cloth Yes
- Speaker Size 4-1/2” cone woofer and 1" dome tweeter
- Input Power (Nominal/Maximum) 30 W / 90 W
- Frequency Response 60 Hz-38 kHz
- Sensitivity 84 dB/2.83 V/m
- Impedance 6 ohms
- Dimensions (W x H x D) 4-7/8" x 8" x 11-3/4" (each)
- Weight 5.1 lbs. (each)
