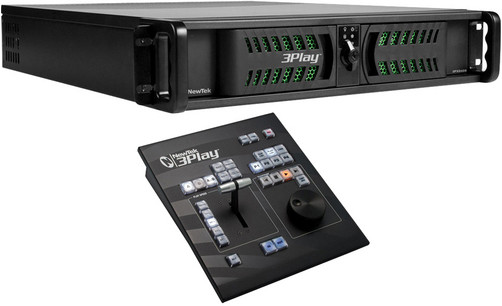

NewTek 3Play 425
HD/SD Multi-Channel Slow-Motion Video Replay Device

OUR PART #:  3PLAY-425

NewTek's 3Play 425 delivers the professional instant replay that will put you head-and-shoulders above the local competition.
Learn More
Our Price: $11,995.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

NewTek 3Play 425
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NewTek's 3Play 425 delivers the professional instant replay that will put you head-and-shoulders above the local competition.

NewTek 3Play 425 Features:

  • 6-channel live sports "sweet spot":  four cameras in, two fully independent channels out
  • Network-quality production in native HD
  • Seamless mixing of live video with assets from your media library
  • Compact, 2RU design fits perfectly in control rooms and production vehicles of all sizes
  • Included control surface with premium T-bar, speed presets, and jog wheel
  • Intuitive replay workflow is easy to learn
  • 30 hours of recording capacity, plus removable storage
  • Session management lets you keep games and clips organized. And built-in applications allow for importing and exporting media to handle any in-game or post-game file requirements.
  • Network-style presentation with smooth, interpolated slow motion.
  • Build highlight or sponsor blocks at breakneck speed for instant replay on-command during timeouts, or going into a break.
  • Package the best plays, critical mistakes, and monumental moments together, and then add transitions and background sound.
  • Plug in 3Play to multiply the inputs of your switcher.

NewTek 3Play 425 Specifications:

  • Dimensions (WxDxH): 19" x 3.5" x 22.5" (48.3cm x 8.9cm x 57.2cm)
  • Weight: 28 lbs. (12.7 kg)
  • Video Inputs: 4 simultaneous inputs
    • Any combination of HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
  • Video Outputs: 2 fully independent, simultaneous playout channels:
    • HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C(BNC)
    • HDMI output
    • Dedicated HDMI multi-view output
    • Network output for over-the-network input to TriCaster
  • Output Modes: A; B; A+B
  • Video Formats:
    • NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
    • Multi-Standard: NTSC-J; PAL 1080/25p, 1080/50i, 720/50p, 720/25p, 576/25i
    • Supports 16:9 and 4:3 aspect ratios
  • Recording Channels: 4
  • Recording Capacity: More than 30 hours of combined 1080i storage across internal drive and removable drive (15+ hours per drive) MPEG-2 all I-frame
  • Genlock:
    • Locks to HD or SD analog signals
    • Supports either tri-level or bi-level sync sources
  • Multi-Viewer: Supported with 2nd display, including HUD
  • Audio Inputs: 4 SDI Embedded, 3 x 2 Balanced 1/4" (Mic/Line), 1 x 2 Balanced XLR (Mic/Line)
  • Audio Outputs: 2 SDI Embedded, 1 x 2 Balanced XLR, 1 x 2 Balanced 1/4"
  • Audio Processing: Audio is uncompressed and sampled at 96kHz, 32-bit
  • Time Code: LTC
  • A/V Standards:
    • HD-SDI video conforms to SMPTE 292M
    • SD video conforms to SMPTE 259M and ITU-R BT.656
    • Analog audio levels conform to SMPTE RP-155
  • Controller: Dedicated controller with T-bar, jog wheel, speed presets, and clip transport
