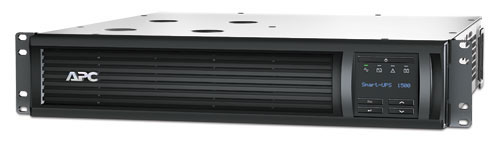

American Power Conversion SMT1500RM2U
APC Smart-UPS, 1000 Watts, 1500 VA, Input 120V, 2RU


The SMT1500RM2U rack-mount unit is a high performance uninterruptible power supply (UPS).
Learn More
Our Price: $763.78
List Price: $1,060.00
You save 28%!
Write the first review.
American Power Conversion SMT1500RM2U
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The SMT1500RM2U rack-mount unit is a high performance uninterruptible power supply (UPS). It provides protection for electronic equipment from utility power blackouts, brownouts, sags, and surges; small utility fluctuations and large disturbances. The UPS also provides battery backup power until utility power returns to safe levels or the batteries are fully discharged.


  • Intuitive LCD interface
  • Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
    Predictive replace battery date
  • Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • High online efficiency
    Reduces utlility costs, generates less heat.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.



  • Output Power Capacity
    1000 Watts / 1500 VA
  • Max Configurable Power
    1000 Watts / 1440 VA
  • Nominal Output Voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    57 - 63 Hz for 60 Hz nominal
  • Waveform Type
    Sine wave
  • Output Connections
    (6) NEMA 5-15R


  • Nominal Input Voltage
  • Input Frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    NEMA 5-15P
  • Cord Length
    8 feet (2.44 meters)
  • Input voltage range for main operations
    82 - 144V
  • Input voltage adjustable range for mains operation
    75 - 154V
