Processor, Vocal Rack Unit


Our Price: $799.99
List Price: $1,199.99
You save 33%! (Low Price Guarantee)
In Stock

Recommended Accessories

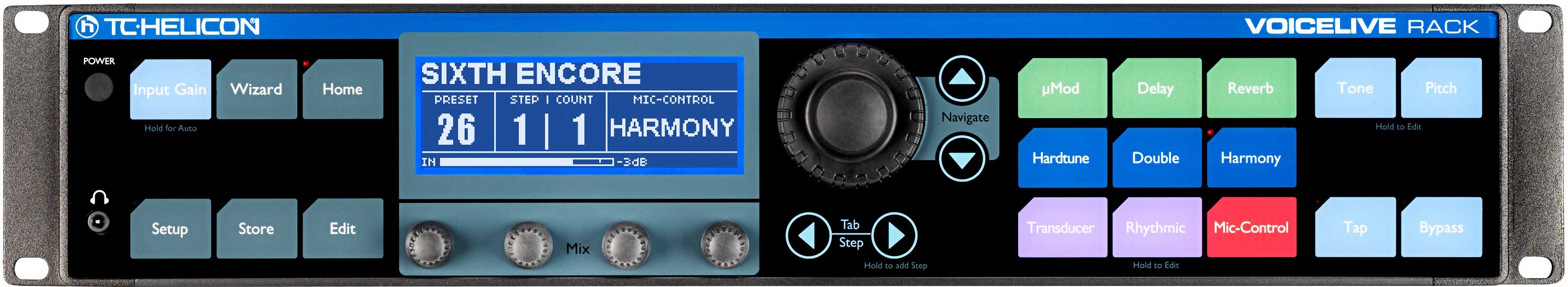

VoiceLive Rack combines a transparent, digitally controlled mic preamp, a full suite of adaptive pre-effects and TC Helicon's industry leading, complete vocal effects path to produce any vocal sound you've heard or dreamed of. Now, whether you're constructing a giant vocal track for your latest tune or mixing front-of-house at today's tour stop, VoiceLive Rack delivers the vocal magic.

  • Full mic channel with digitally controlled gain, phantom power and pre effects
  • Complete vocal effects path; if you dream it, VoiceLive Rack does it
  • Direct access editing and performer control via Mic Control and footswitch input
  • Includes MP-75 Modern Performance Vocal Microphone with Mic Control

Every effect you'll need to sound like your favorite songs.

VoiceLive Rack is bursting with the vocal effects that made VoiceLive 2 TC Helicon's best selling effects unit ever. These effects are studio-grade so your singing can sound like your favorite songs or define new vocal territory.

  • Includes effects made famous by VoiceLive 2 including HardTune, uMod (chorus; flange and detune), tap delay, reverb, harmony, doubling and transducer (distortion and radio voices)
  • Global Tone automatically "produces" your core vocal sound with adaptive EQ, compression and de-ess with manual over-ride
  • Over 200 factory or 400 user presets offer a wide sonic range with room to grow
  • Auto sensing of harmony control instrument to minimize setup time and allow instrument swapping in performance

NaturalPlay Harmonies

Guided by a guitar signal, aux feed from a mixing console, a MIDI keyboard or even no instrument at all, VoiceLive Rack has brilliant vocal harmonies for you.

  • Harmony reference can be guided by guitar, MIDI, MP3 player or key & scale
  • Up to 8 voices with MIDI keyboard control or 4 doubled harmony intervals
  • From smooth and natural sound to extreme vocal pitch shifting
  • Complete customization with adjustable gender, humanization and more

Unique and Easy Touch Interface

Like a great studio engineer, VoiceLive Rack's adaptive Tone feature listens to you and adjusts automatically to make your voice sound smooth and produced.

  • Studio grade adaptive EQ, compression and de-ess reduce muddiness and contain dynamics automatically
  • Adaptive gate fights stage leakage between vocal phrases
  • Manual overrides offer additional user control

Includes MP-75 microphone with Mic Control

This is what every singer deserves: a microphone engineered for the sonic realities of modern vocal performance and simple one-button control of TC Helicon vocal effects. You'd expect nothing less from the only pro audio company 100% dedicated to the needs of singers.

The revolutionary and patent pending Mic Control circuit is built into each VoiceTone single pedal, this allows TC Helicon's MP-75 Modern Performance Vocal Microphone's thumb switch to turn your VoiceTone single's effects on and off. Picture having the freedom to kick-in your vocal effect while working the stage, not gazing at your feet. It gets really cool when you chain mulitple Voice Tone singles pedals together and control each one independently or turn them all on or off in combination.



  • Dimensions: 3.5" x 19" x 5.5" (HxWxD)
  • Weight: 5lbs
  • Construction: Die-cast metal and steel chassis, rubberized end caps, edit/mix knobs, 192 x 64 Blue STN LCD, White backlight display

Connections - Analog Inputs

  • Connectors, balanced: Mic.: XLR, Line: 1/4? phone jack, Guitar: 1/4? phone jack, Aux: 1/8? stereo mini jack
  • Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm, Line: 13/6,5 kOhm
  • Mic Input Level @ 0 dBFS: -49dBu to +10dBu
  • Line Input Level @ -37 dBu to +22 dBu: -37 dBu to +22 dBu
  • EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
  • Mic/Line Input SNR: >107 dB
  • Guitar Input impedance: 1 MOhm
  • Guitar Input Level @ 0 dBFS: 14 dBu to -4 dBu
  • Guitar Input SNR: >104dB
  • Aux Input Level @ 0dBu: +2dBu
  • A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted

Connections - Analog Outputs

  • D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
  • Connectors, balanced: XLR and 1/4? phone jack
  • Output Impedance Balanced/ Unbalanced: 100/50 Ohm
  • Output Range (Line/Mic Level): 16 dBu / 0dBu
  • Dynamic Range: > 109 dB, 20 Hz to 20 kHz
  • Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
  • Headphone Out: 1/8? Mini stereo jack, 32 Ohm, +16dBu max (180mW max)

Connections - Digital Audio

  • Connectors: RCA Phono (S/PDIF) & USB audio
  • Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958, USB Audio
  • Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96kHz

Connections - Control

  • USB: USB-B
  • MIDI: In/Out/Thru: 5 Pin DIN
  • Pedal: 1/4? TRS phone jack for Switch-3

Details - Power

  • External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption: < 14 W

Details - Safety

  • EMC – Complies with: EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B
  • Safety – certified to: IEC 65, EN 60065, UL6500 and CSA, IEC 65, EN 60065, UL6500 and CSA

Operating Requirements

  • Operating Temperature: 32° F to 122° F (0° C to 50° C)
  • Storage Temperature: -22° F to 167° F (-30° C to 70° C)
  • Humidity: Max. 90 % non-condensing
