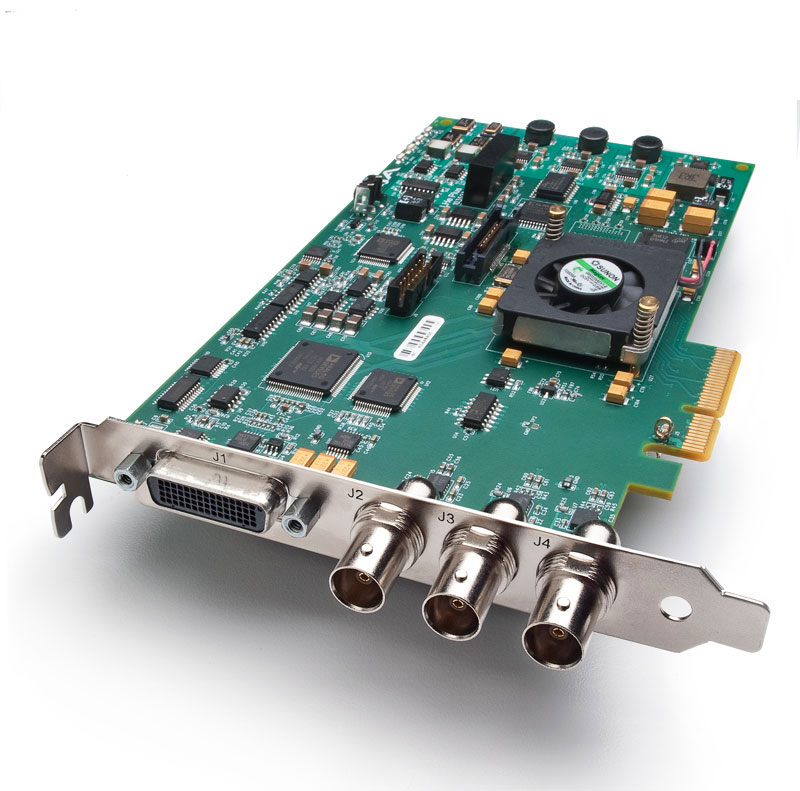

AJA Video Systems Inc KONA LHe Plus
PCIe 4-lane Video Capture Card for MAC/PC

OUR PART #:  KONA-LHE-PLUS

The AJA KONA® LHe Plus offers a full host of professional no-compromise features: 10-bit or 8-bit uncompressed video...
Learn More
Our Price: $995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc KONA LHe Plus
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA KONA® LHe Plus offers a full host of professional no-compromise features: 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or s-video or SD/HD component video I/O, 2-channel balanced analog audio I/O, and broadcast quality hardware down-conversion from HD to SD.

AJA KONA LHe Plus Features:

  • Connectivity - For SDI video, the KONA LHe Plus features one input and two outputs and can be configured independently for HD or SD. It offers Genlock input, and three BNCs which may be configured for analog video input and output (HD or SD). Also included is a 9-pin connector for RS-422 machine control. Because the KONA LHe Plus supports analog component HD input and output, devices with analog HD output, such as HDV decks and even game consoles, can be connected for a variety of workflows.
  • Broadcast-Quality Conversion - KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. Since conversion is hardware-based, it’s available all the time - during ingest or playback.
  • Extend Your Connectivity with the KL-Box-LH (Sold Separately) - The optional KL-Box-LH provides all the standard features of a cable for 1RU rack mounted I/O convenience and added connectivity in the form of additional BNC digital AES/EBU connectors and RCA audio monitoring jacks.

AJA KONA LHe Plus Specifications:

Video Formats:

  • 525i 29.97
  • 625i 25
  • 720P 50, 59.94, 60
  • 1080i 25, 29.97, 30
  • 1080PsF 23.98, 24, 25, 29.97, 30
  • 1080p 23.98, 24, 25, 29.97, 30

Video Input, Digital:

  • SD/HD SDI, SMPTE-259/292/296, 8- or 10-bits
  • Single link 4:2:2 (1 x BNC)

Video Input, Analog:

  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Video Output, Digital:

  • SD SDI, SMPTE-259M, 10-bit
  • HD SDI, SMPTE-292/296, 10-bit

Video Output, Analog:

  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Audio Input, Digital:

  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Audio Input, Analog:

  • 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24dbu Full Scale Digital
  • +/- 0.2db 20 to 20kHz Frequency Response

Audio Output, Digital:

  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Audio Output, Analog:

  • 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24dbu Full Scale Digital (0dbFS)
  • +/- 0.2db 20 to 20kHz Frequency Response
  • 2-channel unbalanced output (via 2 x RCA jacks on optional KL-Box)

Down-Conversion:

  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: Crop: image is cropped to fit new screen size

Reference Input:

  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohm on optional KL-Box, terminated on supplied breakout cable

Machine Control:

  • RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
  • 9-pin D-connector pinout is as follows:
    • Pin 1=GND
    • Pin 2=RX-
    • Pin 3=TX+
    • Pin 4=GND
    • Pin 5=No Connection
    • Pin 6=GND
    • Pin 7=RX+
    • Pin 8=TX-
    • Pin 9=GND
    • Shell=GND
