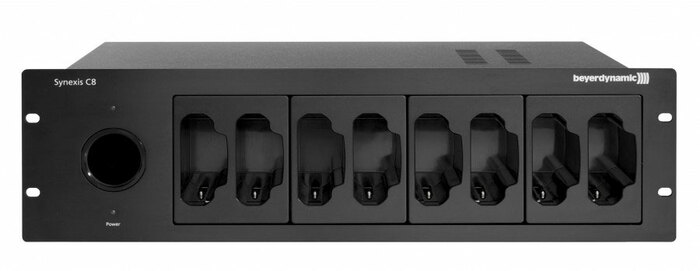

Beyerdynamic SYNEXIS-C-8 8-Bay Rack Mount Charger for Synexis TP / RP Transmitters and Receivers

The Synexis C8 chargers is provided with 8 charging compartments for Synexis TP beltpack transmitters or RP beltpack receivers as well as one charging compartment for the Synexis TH handheld transmitter, when they are powered with rechargeable NiMH batteries. The charging state of the rechargeable batteries is indicated by an LED of the appropriate transmitter or receiver. For the Synexis TH handheld transmitter the charger is provided with a separate LED.

Features:

• Eight charging compartments for beltpack receivers/transmitters and one charging compartment for handheld transmitter
• Mains powered
• LED display for operation
• Rugged metal housing, 19", 3 U

Specifications:

• AC input 100 - 240 V, 50/60 Hz
• Fuse 2 x T 2A L 250V
• Connection AC input and AC output socket
• Switching power supply input 100 - 240 V AC, 50/60 Hz
• Switching power supply output 5 V DC, 12 A
• Full loading current 555 mA (115 V) / 340 mA (230 V)
• Max. charging time approx. 5 hours
• Ambient temperature (26 °C / 55%) 46 °C [114.8 °F]
• Dimensions (W x D x H) 482 x 239.6 x 141.9 mm [19" x 9.4" x 5.6"]
• Weight 5.26 kg [11.6 lbs]
• Charging compartments 8 for beltpack transmitter/ receiver, 1 for handheld transmitter
