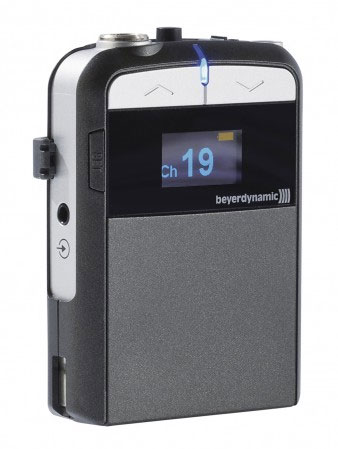

Beyerdynamic SYNEXIS-TP-2
Pocket Transmitter

OUR PART #:  SYNEXIS-TP-2

The Synexis TP beltpack transmitter is used together with the Synexis RP beltpack receiver for guided tours or conferences.
Learn More
Our Price: $459.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Beyerdynamic SYNEXIS-TP-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Synexis TP beltpack transmitter is used together with the Synexis RP beltpack receiver for guided tours or conferences. Transmitter and receiver can also be used for multilingual interpretation applications with a maximum of 19 channels. The transmitter and receiver can also be used in conjunction with hearing aids. The operation range is approximately 229.7 ft (70 m) with a line of sight between transmitter and receiver. The transmitter can be attached to the clothing with the removable belt clip or worn around the neck with a strap. The ergonomic design and the operating elements allow an easy and intuitive operation. Depending on the application, requirement or preference the user can connect an appropriate microphone to the 4-pin mini XLR connection. With the mute button the microphon can be muted for possible individual agreements. Unintended listening is avoided in this way. An internal switch allows selecting the gain for close or distant miking. An external audio source can be connected to the Aux In connection to play standard phrases or music. The OLED display provides a brilliant, easily readable indication of channel, battery status, frequency and channel lock function. With the channel lock function accidental shifting of the selected channel is avoided. The transmitter is powered by two rechargeable NiMH batteries or 1.5 V AA batteries. Due to the integrated charging contacts the rechargeable batteries can remain in the transmitter during charging. The intelligent charging technology automatically switches off the transmitter when charging. The automatic NiMH / Alkaline battery recognition is an essential safety feature and excludes an incorrect operation.

Features:

  • Ergonomic design
  • 19 selectable frequencies
  • Channel selector buttons
  • Channel lock function
  • On/off switch
  • LED to display operation or charging status
  • OLED display to indicate channel, battery status, frequency and channel lock function
  • Mute function for microphone
  • Aux-In connection for audio source such as MP3 player, mini stereo jack (3.5 mm)
  • Adjustable gain via 3-stage switch (Hi/Mid/Low)
  • Microphone connection, 4-pin mini XLR
  • Operation with two rechargeable NiMH batteries or 1.5 V batteries
  • Integrated charging contacts
  • Intelligent charging technology with auto-off function
  • Removable belt clip to attach the transmitter to the clothing
  • Can be worn around the neck when using a strap
  • Soft-touch surface for pleasant handling
  • Automatic NiMH / Alkaline battery recognition

Specifications:

  • Oscillation type. . . . . . . . . . . . . . . . . PLL synthesized control OSC
  • Carrier frequency range . . . . . . . . . . 216.025 - 216.975 MHz
  • Adjustable channel. . . . . . . . . . . . . . 19 channels
  • Frequency response . . . . . . . . . . . . . 100 Hz - 10 kHz
  • Dynamic range . . . . . . . . . . . . . . . . . > 70 dB
  • Ambient temperature. . . . . . . . . . . . -10 - +50 °C [14 - 122 °F]
  • T.H.D.. . . . . . . . . . . . . . . . . . . . . . . . < 2%
  • Battery . . . . . . . . . . . . . . . . . . . . . . . Two 1.2 V AA (NiMH, 2100 mAh) or two 1.5 V AA (Alkaline)
  • Operation range. . . . . . . . . . . . . . . . 70 m [229.7 ft] (line of sight)
  • Microphone capsule type . . . . . . . . . Condenser
  • Antenna. . . . . . . . . . . . . . . . . . . . . . Microphone cable serves as antenna
  • RF output power . . . . . . . . . . . . . . . < 10 mW
  • Spurious emission. . . . . . . . . . . . . . . < 250 nW
  • Audio input . . . . . . . . . . . . . . . . . . . Mic in and Aux in
  • Maximum deviation . . . . . . . . . . . . . ±10 kHz
  • Operation hours . . . . . . . . . . . . . . . . NiMH – approx. 12 hours Alkaline – 12 hours min.
  • Max. charging time . . . . . . . . . . . . . approx. 5 hours
  • Dimensions (D x W x H) . . . . . . . . . . 31.7 x 67.7 x 93 mm [1.2" x 2.7" x 3.7"]
  • Weight (without batteries) . . . . . . . . 90 g [0.2 lbs]
