Beyerdynamic STEGOS-RS
Digital Diversity Receiver, No Mic

OUR PART #:  STEGOS-RS

The STEGOS-RS receiver provides three different connections for video conference systems: 3-pin Phoenix terminal strip, mini jack (3.5 mm) and 3-pin XLR.
Learn More
Our Price: $1,699.99
List Price: $1,999.00
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Beyerdynamic STEGOS-RS
Qty:
In Stock

Similar Products

The STEGOS-RS receiver provides three different connections for video conference systems: 3-pin Phoenix terminal strip, mini jack (3.5 mm) and 3-pin XLR. The individual microphone signals can be picked up via a multipin Phoenix terminal strip. An RS 232 interface and USB connector are provided for the data exchange with media control systems or PC. The channels LEDs indicate which channel isoccupied (red) and which channel is available (green).

With a PC connected to the receiver the volume of the individual microphones and the operating modes On/Off or Push-To-Mute can be selected with the supplied, user-friendly Stegos software. For internal agreements the function “Global Mute” allows muting all microphones simultaneously by pressing the button of just one microphone. The battery status of the microphones is also displayed. The individual channel settings are stored when the receiver is turned off.

A maximum of four boundary microphones can be operated with one receiver. The boundary microphone provides a semi-cardioid polar pattern with a high gain before feedback. The microphone is powered via integrated rechargeable NiMH batteries. The operating time is not less than 14 hours. The microphone can be recharged or permanently operated via a power supply unit connected to the DC connector. The maximum charging time is 2 hours. An LEDon the rear of the microphone indicates the battery and charging status.



Features:

  • Quad receiver for up to 4 boundary microphones Stegos TB
  • For use with standard video conference systems
  • Receiver for a maximum of four wireless boundary microphones
  • Wireless transmission in the world-wide approved frequency range of 2.4 GHz
  • High noise immunity and safe against unauthorised listening due to Spread-Spectrum and 128-bit encryption key
  • eco-friendly due to:
    – Rechargeable NiMH batteries
    – Low energy consuming receiver
    – Eco friendly production in Germany
    – Eco friendly disposal, especially of the rechargeable battery cells
    – Compliant with RoHS and WEEE

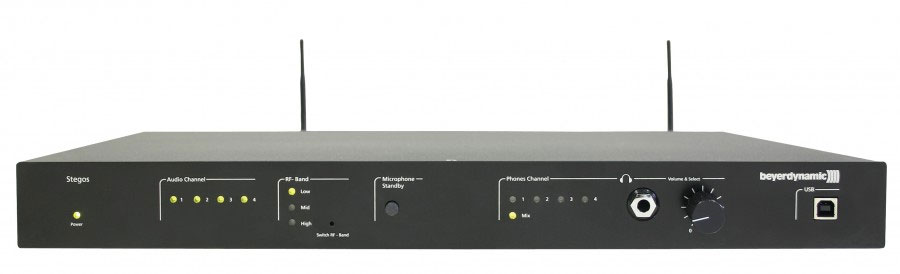

Receiver

Power on LED

Status LEDs for a maximum of four microphone channels

Flush switch for RF band switching with LED

Standby switch to switch off the microphones

Headphone connector with volume control to listen to individual microphone channels or the mix signal

USB connector for external operation/monitoring via PC

RS 232 interface with open protocol for media control system

Connection to video conference system via 3-pin Phoenix terminal strip, mini jack (3.5 mm) or 3-pin XLR

Selector switch for line/microphone level

Phoenix terminal strip to pickup individual microphone signals e.g. for the use of external DSP devices

Two antenna connections for antenna diversity (one Rx and one Tx/Rx antenna)
