Sennheiser 2000C2-945BK
Dual Channel Contract Wireless Microphone System, 945-1

OUR PART #  2000C2-945BK

Call for price! Not available online.
List Price: $7,749.00

Select model: (shipping times are approximate)

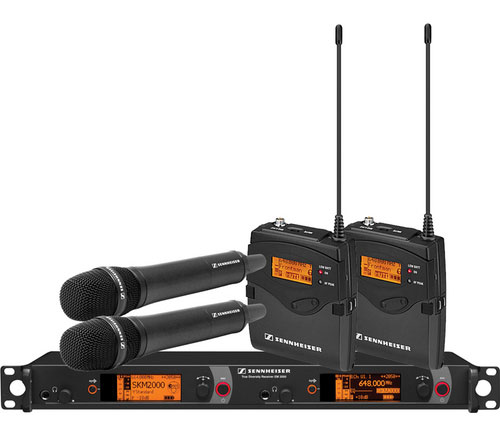

The Sennheiser 2000 Series dual combo wireless microphone system consists of the Sennheiser EM 2050 dual wireless receiver, two SKM 2000-XP handheld transmitters with MD835 cardioid dynamic microphone capsules, and two SK 2000-XP bodypack transmitters. The system yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.

An integrated active splitter allows up to 16 channels without using external splitters, and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC, and remotely controlled with Sennheiser's WSM software. Additional features include a full programmable EQ, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more.

FEATURES

Receiver

  • 19" all-metal housing with integrated power supply
  • Up to 3000 frequencies in up to 75MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • True diversity technology for best reception quality
  • Integrated antenna splitter for cascading upto 8 devices without using additional splitters
  • Pilot tone squelch for interference-free operation
  • Scan feature within the channel band system
  • Continuous scanning together with Sennheiser's Wireless Systems Manager
  • Frequency setting always visible on the display
  • Antenna cables for active antenna supply
  • Transformer-balanced audio outputs
  • HDX noise reduction system with signal-to-noise ratio less than 12dB(A)
  • Ethernet for connecting a PC
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display
  • Transmitters can be configured from the receiver menu
  • Transmitters can be synchronized over the infrared interface
  • 4 Selectable equalizer presets
  • Soundcheck mode for monitoring transmission conditions
  • Adjustable headphone connection

Bodypack & Handheld Transmitters

  • Rugged metal housing
  • Up to 75MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • Frequency setting in 25kHz steps
  • Pilot tone squelch for interference-free operation
  • External charging contacts for recharging the BA-2015 battery while it's still in the transmitter
  • Backlit display on transmitter (keystroke activation)
  • Auto-lock feature to prevent buttons from accidently being pressed
  • Audio and RF Mute feature for muting the transmitter
  • Transmitters can be configured from the receiver menu
  • Possible to synchronize with the receiver using infrared interface
  • Wide range of accessories for virtually any use

SPECIFICATIONS

Receiver

  • Carrier Frequency:  Max. 3,000
  • Presets:  32
  • Bandwidth:  Max. 75MHz
  • Squelch:  off, 5 - 25 dBµV can be set in 2dB steps
  • Intermodulation Distortion:  = 75 dB
  • Antenna Connector:  2 BNC (50O)
  • Gain:  0 dB ±0.5 dB based on antenna inputs
  • Operating Temperature:  -10 °C - + 55 °C
  • Deviation:  +/- 48kHz (Peak)
  • Compander:  HDXSignal-to-Noise Ratio  > 90 dB(A)
  • THD:  < 0.9%
  • Frequency Response:  25Hz to 15kHz
  • Connector:  XLR-3 + 1/4" Phone (6.3mm) jack x4
  • Power Supply:  100 to 240 VAC, 50/60Hz
  • Consumption:  0.2A
  • Dimensions:  17.16 x 8.46 x 1.69" (436 x 215 x 43mm)
  • Weight:  6.39 lb (2.9 kg)

Handheld Transmitter

  • Type: SKM 2000-XP Handheld with MD835 Capsule
  • Modulation:  FM
  • Carrier Frequency:  Max. 3,000
  • Presets:  Max. 64
  • Bandwidth:  Max. 75Hz
  • Signal-to-Noise Ratio:  = 120 dBA (@ 1mV peak deviation)
  • Frequency Response:  80Hz - 18kHz
  • Audio Output Power:  Selectable from 10, 30, 50, or 100 mW
  • Compander:  HDX
  • Deviation:  Nominal: ±24 kHz // Peak: ± 48 kHz
  • Operating Voltage: 2 x 1.5 V (AA) (8 Hours)
  • Dimensions: 1.96 x 10.43" (50 x 265mm)
  • Weight: 0.99 lb (450g)

Bodypack Transmitter

  • Type:  SK 2000-XP Bodypack
  • Modulation:  FM
  • Carrier Frequency:  max. 3,000
  • Presets:  64
  • Bandwidth:  max. 75 MHz
  • RF Output Power:  Selectable from 10, 30, 50, or 100 mW
  • Deviation:  Nominal: +/- 24kHz // Peak: +/- 48kHz
  • Frequency Response:  Line: 25 - 18,000 Hz, Mic: 80 - 18,000 Hz
  • THD:  < 0.9%
  • Signal-to-Noise Ratio:  > 120 dB(A) (@ 1 mV, peak deviation)
  • Connection:  Audio input connector: Sennheiser (3-pin) socket
  • Power:  2 x 1.5 V (AA)
  • Operating time (transmitter): typ. 8 hours
  • Max. input voltage: 3 Veff (mic + line)
  • Dimensions:  3.22 x 2.51 x 0.94" (82 x 64 x 24mm)
  • Weight:  5.64oz (160g)

Sennheiser 2000C2-945BK
Dual Channel Contract Wireless Microphone System, 945-1

OUR PART #  2000C2-945BK

Product Information:

The Sennheiser 2000 Series dual combo wireless microphone system consists of the Sennheiser EM 2050 dual wireless receiver, two SKM 2000-XP handheld transmitters with MD835 cardioid dynamic microphone capsules, and two SK 2000-XP bodypack transmitters. The system yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.

An integrated active splitter allows up to 16 channels without using external splitters, and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC, and remotely controlled with Sennheiser's WSM software. Additional features include a full programmable EQ, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more.

FEATURES

Receiver

  • 19" all-metal housing with integrated power supply
  • Up to 3000 frequencies in up to 75MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • True diversity technology for best reception quality
  • Integrated antenna splitter for cascading upto 8 devices without using additional splitters
  • Pilot tone squelch for interference-free operation
  • Scan feature within the channel band system
  • Continuous scanning together with Sennheiser's Wireless Systems Manager
  • Frequency setting always visible on the display
  • Antenna cables for active antenna supply
  • Transformer-balanced audio outputs
  • HDX noise reduction system with signal-to-noise ratio less than 12dB(A)
  • Ethernet for connecting a PC
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display
  • Transmitters can be configured from the receiver menu
  • Transmitters can be synchronized over the infrared interface
  • 4 Selectable equalizer presets
  • Soundcheck mode for monitoring transmission conditions
  • Adjustable headphone connection

Bodypack & Handheld Transmitters

  • Rugged metal housing
  • Up to 75MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • Frequency setting in 25kHz steps
  • Pilot tone squelch for interference-free operation
  • External charging contacts for recharging the BA-2015 battery while it's still in the transmitter
  • Backlit display on transmitter (keystroke activation)
  • Auto-lock feature to prevent buttons from accidently being pressed
  • Audio and RF Mute feature for muting the transmitter
  • Transmitters can be configured from the receiver menu
  • Possible to synchronize with the receiver using infrared interface
  • Wide range of accessories for virtually any use

SPECIFICATIONS

Receiver

  • Carrier Frequency:  Max. 3,000
  • Presets:  32
  • Bandwidth:  Max. 75MHz
  • Squelch:  off, 5 - 25 dBµV can be set in 2dB steps
  • Intermodulation Distortion:  = 75 dB
  • Antenna Connector:  2 BNC (50O)
  • Gain:  0 dB ±0.5 dB based on antenna inputs
  • Operating Temperature:  -10 °C - + 55 °C
  • Deviation:  +/- 48kHz (Peak)
  • Compander:  HDXSignal-to-Noise Ratio  > 90 dB(A)
  • THD:  < 0.9%
  • Frequency Response:  25Hz to 15kHz
  • Connector:  XLR-3 + 1/4" Phone (6.3mm) jack x4
  • Power Supply:  100 to 240 VAC, 50/60Hz
  • Consumption:  0.2A
  • Dimensions:  17.16 x 8.46 x 1.69" (436 x 215 x 43mm)
  • Weight:  6.39 lb (2.9 kg)

Handheld Transmitter

  • Type: SKM 2000-XP Handheld with MD835 Capsule
  • Modulation:  FM
  • Carrier Frequency:  Max. 3,000
  • Presets:  Max. 64
  • Bandwidth:  Max. 75Hz
  • Signal-to-Noise Ratio:  = 120 dBA (@ 1mV peak deviation)
  • Frequency Response:  80Hz - 18kHz
  • Audio Output Power:  Selectable from 10, 30, 50, or 100 mW
  • Compander:  HDX
  • Deviation:  Nominal: ±24 kHz // Peak: ± 48 kHz
  • Operating Voltage: 2 x 1.5 V (AA) (8 Hours)
  • Dimensions: 1.96 x 10.43" (50 x 265mm)
  • Weight: 0.99 lb (450g)

Bodypack Transmitter

  • Type:  SK 2000-XP Bodypack
  • Modulation:  FM
  • Carrier Frequency:  max. 3,000
  • Presets:  64
  • Bandwidth:  max. 75 MHz
  • RF Output Power:  Selectable from 10, 30, 50, or 100 mW
  • Deviation:  Nominal: +/- 24kHz // Peak: +/- 48kHz
  • Frequency Response:  Line: 25 - 18,000 Hz, Mic: 80 - 18,000 Hz
  • THD:  < 0.9%
  • Signal-to-Noise Ratio:  > 120 dB(A) (@ 1 mV, peak deviation)
  • Connection:  Audio input connector: Sennheiser (3-pin) socket
  • Power:  2 x 1.5 V (AA)
  • Operating time (transmitter): typ. 8 hours
  • Max. input voltage: 3 Veff (mic + line)
  • Dimensions:  3.22 x 2.51 x 0.94" (82 x 64 x 24mm)
  • Weight:  5.64oz (160g)
