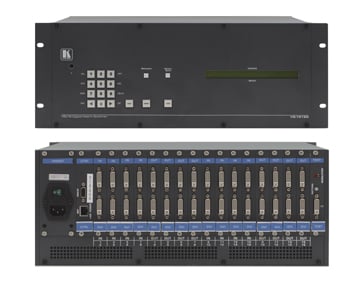

Kramer VS1616D
2x2 to 16x16 Multi-Format Modular Digital Matrix Switcher Chassis

OUR PART #:  VS1616D

The VS-1616D is a high-performance matrix switcher chassis for DVI & HDMI signals.
Learn More
Our Price: $3,596.00
List Price: $4,495.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS1616D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The VS-1616D is a high-performance matrix switcher chassis for DVI & HDMI signals. The unit is modular and populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The unit includes a chassis, power supply, control board and a test board that can monitor and test any input and output in the matrix.
  • Max Data Rate - 3.2Gbps
  • HDTV compatible
  • HDCP complaint - With DVI (HDCP) and HDMI modules
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • Modular & Easily Configurable Platform - Input or output module types can be mixed and added in increments of 2 from 2x2 up to 16x16.
  • Available Modules - DVI, DVI (HDCP) & HDMI.
  • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI and HDMI systems.
  • Flexible Control Options - Front panel, IR remote, RS-232 (K-Router™ Windows®-based software is included), Ethernet.
  • Front Panel Lockout
  • Take Button - Executes multiple switches all at once
  • Memory Locations - Sotres multiple switches as presets to be recalled and executed as needed
  • Test Pattern Module - With 4 output resolutions for troubleshooting video problems
  • Standard 19" Rack Mount Size - 4U rack ears included

Specifications:

  • Bandwidth: Supports up to 3.2Gbps bandwidth per channel (limited by the card installed).
  • Max Resolution: Up to UXGA; 1080p, 1920x1200.
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Switching: Confirm or At Once for immediate switching
  • Power Source: 100-240V AC, 50/60Hz, 135VA.
  • Dimensions: 19” x 14.2” x 4U (W, D, H) rack-mountable.
  • Weight; 17.9lbs
2 Input HDMI over HDBaseT Card
Kramer HDBT-IN2-F16 2 Input HDMI over HDBaseT Card
The Kramer HDBT-IN2-F16 is a 2 input HDMI over HDBaseT module card that's designed for use with their VS-1616D matrix switcher chassis.
1,000.00 1,250.00 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
2 Output HDMI over HDBaseT Card
Kramer HDBT-OUT2-F16 2 Output HDMI over HDBaseT Card
Kramer's HDBT-OUT2-F16 is a two-output HDMI over HDBaseT module card designed for use with the Kramer VS-1616D mulit-format digital matrix switcher.
1,000.00 1,250.00 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
2 channels Audio Analog & Digital input Card for Frame 16
Kramer AAD-IN2-F16 2 channels Audio Analog & Digital input Card for Frame 16
The Kramer AAD-IN2-F16 is a 2 channel input card for the Fame 16.
794.40 993.00 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
2 Channels Audio Analog & Digital output Card for Frame 16
Kramer AAD-OUT2-F16 2 Channels Audio Analog & Digital output Card for Frame 16
The Kramer AAD-IN2-F16 is a 2 channel output card for the Fame 16.
456.80 571.00 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Blank Module Cover for Kramer VS-1616D
Kramer BLP-F16 Blank Module Cover for Kramer VS-1616D
Blank Cover Plate for Empty Module Slots on the Kramer VS-1616D.NOTE: Appearance may vary from the image above
12.00 15.00 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
