West Penn 252815-1000
RG59/U CCTV + Power Coax, Plenum Rated Cable, 1000ft

OUR PART #:  252815-1000

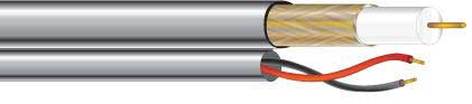

RG59/U 20AWG Bare Copper, 95% braid + 2 Conductor 18AWG - Siamese Construction with Plenum PVC Jacket.
Learn More
Selected Model Price: $550.97
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 252815-1000
Select a Model: (shipping times are approximate)
Qty:

Similar Products

RG59/U 20AWG Bare Copper, 95% braid + 2 Conductor 18AWG - Siamese Construction with Plenum PVC Jacket. For use indoors within ducts, plenums and other spaces used for environmental air for CCTV applications.

CONSTRUCTION PARAMETERS

Coaxial Cable

  • Conductor: 20AWG Bare Copper RG59/U
  • Stranding: Solid
  • Insulation Material: Foam FEP
  • Insulation Thickness: 0.138" Nom
  • Shield: 95% Bare Copper Braid
  • Jacket Material: PVC

Power Pair

  • Conductor: 18AWG Bare Copper
  • Stranding: 7x26
  • Insulation Material: Flouropolymer
  • Insulation Thickness: 0.007" Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: PVC

ELECTRICAL & ENVIRONMENTAL PROPERTIES

Coaxial Cable

  • Temperature Rating: -4 deg F to 140 deg F
  • Operating Voltage: 300V RMS
  • Max. Capacitance Between Conductors @ 1kHz: 16.2pf/ft Nom.
  • Nom. Velocity of Propagation: 82%

Power Pair

  • Temperature Rating: -4 deg F to 140 deg F
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors @ 1kHz: 30pf/ft Nom.
  • DC Resistance per Conductor @ 68 degrees F: 6.2Ohms/1M' Nom.
  • Insulation Colors: Black, Red
