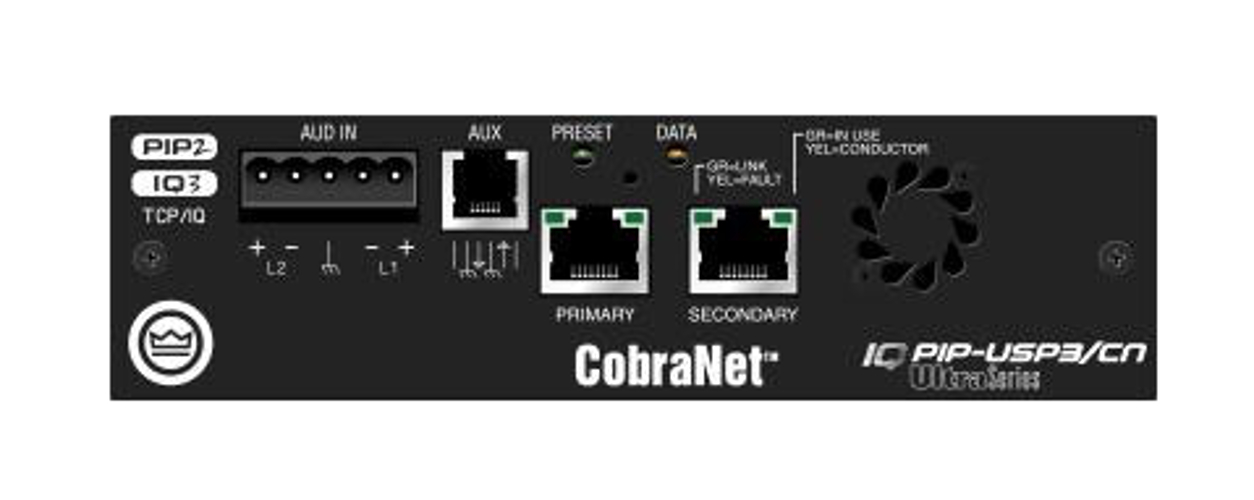

Crown IQ3USP3CN
100mb CobraNet Ethernet

OUR PART #:  IQ3USP3CN

The PIP-USP3CN module includes all of the features of the PIP-USP3 as well as integrating CobraNet transport in the same single 100-MB Ethernet connection.
Learn More
Our Price: $1,870.05

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Crown IQ3USP3CN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PIP-USP3CN module includes all of the features of the PIP-USP3 as well as integrating CobraNet transport in the same single 100-MB Ethernet connection. Signal routing is easily controlled via FREE IQWic software. The PIP-USP3CN also provides two analog audio inputs that can be configured as a redundant signal or for page-over applications. Saves audio bandwidth within the CobraNet network by providing local signal processing of the signal at the amplifier. Also features amplifier output listen bus that allows you to route the amplifier output signal back through Ethernet to a central listening position.

Crown IQ3USP3CN Features:

  • 100Mb Ethernet single-plug solution for both CobraNetaudio and TCP/IQ control and monitoring
  • Analog audio inputs allow CobraNet network audioinput, CobraNet audio backup, or a hardwire emergency override of CobraNetaudio
  • "Listen Bus" amplifier output monitor via CobraNet
  • 24 bit digital to analog conversion with 32 bit,floating point DSP processing
  • 64 assignable filters with 9 different filter typesincluding all-pass filters
  • Over 2 seconds of delay available per" channel
  • Input compressors and output limiters for each channel
  • Dual, uncorrelated noise generators for noise masking
  • Sine generator
  • Load supervision
  • Full error reporting
  • Firmware upgrades via the network
  • 10 user selectable presets
  • Reliable FLASH memory backup of all parameters
  • Three Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications (Effective May 1, 2011 when installed into a CTs Series amplifier the warranty is extended to five years.)

Crown IQ3USP3CN Specifications:

  • Internal Controls: A Reset/Preset switch, accessible with a straightened paper clip through the PIP panel, selects the next user preset if pressed for less than 2 seconds, resets the PIP to preset “0” if pressed for more than 2 seconds.
  • Connectors:
    • Balanced Audio Input Connector: Single 5-pin removable barrier-strip connector for bothchannels.
    • AUX Connector: Configurable forAUX input or AUX output. Listen Bus is available through CobraNet.
    • Network Connector: The dual RJ45 CobraNet connectors allow a Primary & Secondary connection to the 100Mb Ethernet network. Should the Primary connection lose link activity with the network, the USP3/CN will automatically switch to the Secondary connection to ensure uninterrupted audio and control.The indicators on the RJ45 connectors display network information concerning the Ethernet and CobraNet connections
  • Indicators:
    • Preset Indicator: Signals the number of the current preset, if active, by flashing a series of flashes equal to the current preset number. IQ DataIndicator Flashes when the IQ-PIP-USP3/CN receives a valid command that is addressed to the IQ-PIPUSP3/CN
  • Switches:
    • Reset/Preset Switch: Usedto change presets, restore settings to factory default or restore all thepresets to the factory defaults. During operations of the switch, the Dataindicator flashes as an aid to the user.
    • Memory Backup: 512 kbyte non-volatile FLASH memory for backup of run-time parameters, presets, and program storage. Capable of greater than 10 year dataretention and estimated 20+ year life-cycle.
  • Communications: 100Mb Fast Ethernet conforming to IEEE 802.3.
  • Power Requirements (provided by the amplifi er): +24VDC @ 350mA, –24VDC @ 30mA. < 8.7 Watts.
  • Overall Audio Performance:
    • DSP Processing: 32 bit, Floating Point, 665 µslatency.
    • DAC Conversion: 24 bit, 135 µs latency.
    • Dynamic Range: 103 dB typical (A-weighted, 20Hz–20kHz,audio sourced from muted CobraNet channel).
    • Distortion: < 0.05% THD+N, 20Hz–20kHz.
    • Frequency Response: ± 0.5 dB, 20Hz–20kHz.
    • Input/Output Monitor Accuracy: Typically ±1dB.
