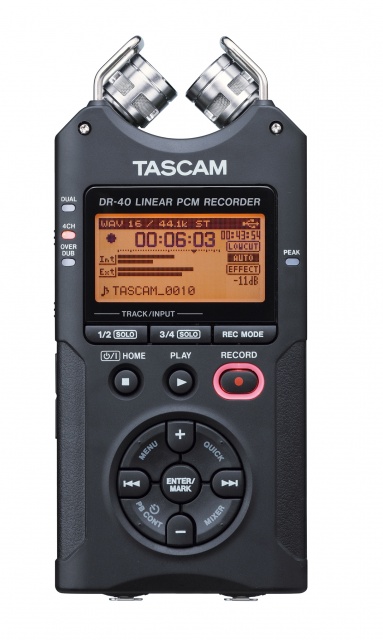

Product Overview
The adjustable mics, four-track recording and extended battery life of the Tascam DR-40 give you the flexibility you need to record tracks anywhere.
The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mic are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding Tascam microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4" line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB and a 2GB card is included.
Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting low cut filter, and much more - all with Tascam's simple-to-use interface. No other recorder makes home or live recording as simple as the Tascam DR-40.
Tascam DR-40 4-Track Mobile Digital Recorder Includes:
- 2GB SD card
- Mini USB cable
Tascam DR-40 4-Track Mobile Digital Recorder Features:
- Built-in condenser microphones, adjustable to XY or AB position
- XLR & 1/4" mic/line input with phantom power
- Record the built-in microphones with the XLR mic or line input for a four-track recording
- Dual recording mode captures a safety track at a lower level to avoid distortion
- Overdub mode allows recording along with a previous take
- Peak reduction automatically sets the ideal recording level
- 15-hour battery life from three AA batteries
- Up to 96kHz/24-bit WAV/BWF or MP3 recording solution
- 2-second pre-recording buffer
- Variable speed playback form 50-150% speed without changing the pitch
- Adjustable limiter and low cut filter (40/80/120Hz)
- Built-in speaker and chromatic tuner
- 1/8" headphone/line output
- Playback EQ and level align
- Stereo reverb effect
- Tripod mounting hole
- SD/SDHC card slot supports up to 32GB media (2GB card included)
- Locking Neutrik Combi jacks
- USB 2.0 jack and cable for transferring recordings to computer
- Powered by three AA batteries, AC adapter (optional PS-P515U), external battery pack (optional BP-6AA), or USB bus power
Tascam DR-40 4-Track Mobile Digital Recorder Specifications:
- General:
- Recording Media: SD card - 64MB to 2GB // SDHC card - 4GB to32GB
- Power Consumption: 2.5W max
- Battery Operation Time: 15 hours (continuous operation, phantom power off)
- Dimensions: 2.75" x 6.1" x 1.37" with mic closed // 3.54" x 6.1"x 1.37" with mic open
- Weight: 213g, without batteries
- Number of Channels: 4 channels, 2 stereo
- Playback Speed Control: 50-150% without changing pitch
- Built in microphone: Cardioid Condenser microphones supporting both X-Y/A-B setting
- External Mic/Line In:
- Connector: XLR/TRS Combo Jack (1:GND, 2:HOT, 3: COLD)
- Input Impedance: 2.2kOhm (mic) // 10kOhm (line)
- Nominal Input Level: -19dBV (mic) / +4dBu (line)
- Maximum Input Level: -3dBV (mic) / +20dBu (line
- Line Out:
- Connector: 1/8" TRS mini-phone jack, unbalanced
- Output Impedance: 12 Ohms
- Nominal Output Level: 14dBV / 10kOhm loaded
- Maximum Output Level: 2dBV / 10kOhm loade
- Headphone:
- Maximum Output: 20mW, 32Ohm loade
- Built-in Speaker:
- USB:
- Connector: Mini B type
- Format: USB 2.0 high speed mass storage class
- Power:
- Three AA batteries (alkaline or NiMH)
- 100~240VAC, 50-60Hz (AC adapter optional PS-P515U)
- Power Consumption: 2.5W max
- Recording and Playback Formats:
- WAV/BWF: 44.1kHz/48kHz/96kHz, 16/24 bit (Stereo or Mono)
- MP3: 44.1kHz/48kHz, 32k/64k/96k/128k/192k/256k/320kbps
