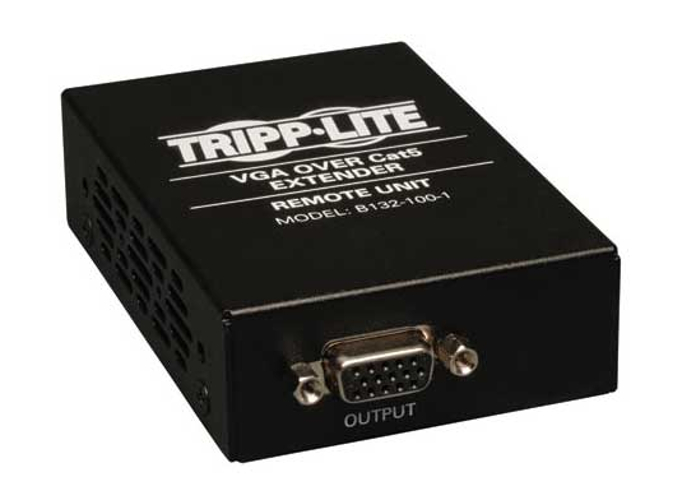

Tripp Lite B132-100-1 VGA over CAT5/CAT6 Extender

Tripp Lite's B132-100-1 works with a B132-002-1 or B132-004-1 local unit to extend a 1920x1440 (60Hz) video signal up to 500' or a 1024x768 (60Hz) video signal up to 1,000' when using 24AWG, Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1,000' use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. 1 year manufacturer's limited warranty.

Tripp Lite B132-100-1 Includes:

• Extender Remote (receiver) unit
• Mini-screwdriver for EQ/Gain adjustment
• Mounting Hardware
• External Power Supply (Input 100-240V, 50/60Hz, 0.5A output: 5V, 2A)
• Owner's Manual

Tripp Lite B132-100-1 Features:

• Works with a B132-002-1 or B132-004-1 local unit toextend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz)video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable
• For optimal image quality between 500 and 1,000 ft.,use Zero-Skew cable, such as Tripp Lite P524-01K
• Features built-in Equalization and Gain controls toadjust the video image
• Includes mounting hardware that allows unit to bewallmounted, rackmounted or pole mounted
• Ideal for digital signage situations, such as retail,schools, churches, etc..
• Compliant with the Federal Trade Agreements Act (TAA)for GSA Schedule purchases
• 1 year manufacturer' limited waranty.

Tripp Lite B132-100-1 Specifications:

• Physical:
  • Shipping Weight (lbs): 1
  • Unit Dimesions (HWD): 1" x 2.5" x 3.6"
  • Unit Weight (lbs): 0.45"
  • Color: Black
• Connections:
  • Connector A: HD15 Female
  • Connector B: RJ45 Female
• [Please see the attached data sheet for full specifications]
