Datavideo Corporation TLM434H
HD Quad 4.3" Rack LCD


Built within a robust steel and aluminium 19-inch rack mountable design...
Learn More
Our Price: $2,499.00
Write the first review.
Datavideo Corporation TLM434H
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

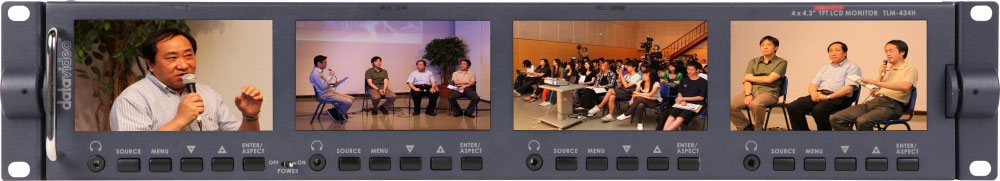

Built within a robust steel and aluminium 19-inch rack mountable design, this bank of both HD & SD 4.3-inchs (16:9 and 4:3) high quality TFT LCD monitors are perfect for integration.

Each monitor has individual adjustments for contrast, brightness and colour saturation as well a LED tally light indication.

Connection includes HD-SDI, SD-SDI and HDMI Inputs. Embedded audio is supported on both SDI & HDMI, with superimposed on-screen audio and time code indicator.

All four of the SDI inputs include a seamless bypass, ensuring the monitor is an ideal companion for switches. They are also perfect for integration within system racks, OB Van, studios or many more applications.


  • 4 x 4.3" TFT LCD
  • Resolution: 480 x 272
  • Brightness: 500 cd/m2
  • Individual adjustments of brightness, contrast, color saturation and backlight level for each monitor
  • On-Screen Time Code
  • Front panel headphone jacks
  • Tally indicator
  • audio indicator
  • support embedded audio on SDI & HDMI
  • HDSDI/SDI and HDMI input
  • Blue only
  • 4:3 & 16:9 display mode switching/ PAL & NTSC auto switching
  • Adjustable view angle


Viewing Angles:
Top: 40 degrees
Bottom: 60 degrees
Left: 60 degrees
Right: 60 degrees

Video Input

DC12Volt, 3.0A
