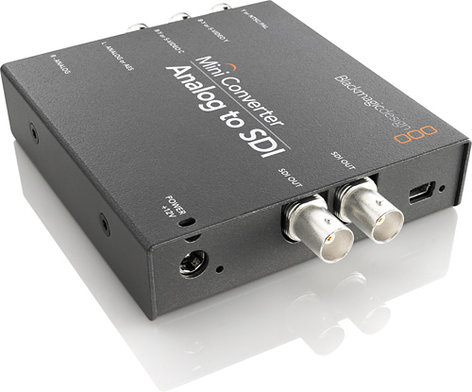

Blackmagic Design CONVMAAS2
Analog to SDI Mini Converter

OUR PART #:  CONVMAAS2

Blackmagic Design's Analog to SDI Mini Converter is perfect for converting from analog video in HD/SD component, NTSC...
Learn More
Our Price: $185.25
List Price: $195.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMAAS2
Qty:
In Stock

Similar Products

Blackmagic Design's Analog to SDI Mini Converter is perfect for converting from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, Set top boxes, gaming consoles and HDV cameras to SDI video.

Blackmagic Design CONVMAAS2 Specifications:

Connections

  • SDI Video Input: None
  • SDI Video Output: Automatically matches the SD and HD video input.
  • Analog Video: Component SD/HD, NTSC, PAL and S-Video.
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4" jack connections.
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4" jack connections.
  • SDI Redundant Input: None
  • Multi Rate Support: Auto detection of HD or standard definition SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes

Standards

  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:02:02
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit.
  • SDI Color Precision: 4:02:02
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and3 Gb/s SDI.
  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98,1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and720p60.
  • Analog Format Support: 625/25 PAL, 525/29.97 NTSC,1080PsF23.98,1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
  • Analog Color Space: YUV
  • Analog Color Precision: 4:02:02

Extras

  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches or USB software.
  • Format Conversion: None
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 6.50 Watts
  • Operational Voltage Range: 12 - 31 Vdc
  • Product Warranty: 3 Year Limited Manufacturer's Warranty.
