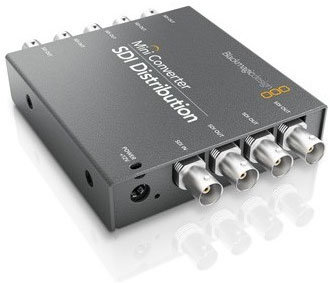

Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier for SD-SDI, HD-SDI, and 3G-SDI Signals

OUR PART #: CONVMSDIDA MFR #: BMD-CONVMSDIDA

Copied to clipboard

Blackmagic Design's SDI Distribution Mini Converter is ideal for connecting the same signal to several devices at once. ...Read more

Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier For SD-SDI, HD-SDI, And 3G-SDI Signals Image 1
Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier For SD-SDI, HD-SDI, And 3G-SDI Signals Image 2
Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier For SD-SDI, HD-SDI, And 3G-SDI Signals Image 3
Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier For SD-SDI, HD-SDI, And 3G-SDI Signals Image 4
Blackmagic Design Mini Converter SDI Distribution 1x8 Distribution Amplifier For SD-SDI, HD-SDI, And 3G-SDI Signals
Our Price: $165.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Blackmagic Design's SDI Distribution Mini Converter is ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI. It also supports ancillary data and embedded audio.

Specifications

  • Connections
    • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI.
    • SDI Video Output: 8 outputs automatically match the SDI video input.
    • Analog Video: None
    • Analog Audio: None
    • AES/EBU Digital Audio: None
    • Multi Rate Support: Auto detection of HD or standard definition inputs.
    • Updates and Configuration: None
    • Reclocking: Yes
  • Standards
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit.
    • SDI Color Precision: 4:2:2 and 4:4:4
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
    • ASI Support: Yes
    • SDI Format Support: NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p and 2K PsF
    • Analog Format Support: None
    • Analog Color Space: None
    • Analog Color Precision: None
  • Extras
    • Software Control: None
    • Internal Software Upgrade: None
    • Settings Control: None
    • Power Supply: 12V universal power supply included with international socket adapters for all countries.
    • Power Consumption: 4.80 Watts
    • Operational Voltage Range: 12V - 30V
    • Product Warranty: 3 Year Limited Manufacturer’s Warranty

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Reviews

Reviewed by 1 customer
(1 is Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

Adam E on 05/14/2018 Verified - This reviewer has purchased this product

Plug and play for us... running 1080p50Hz into 7 splits, no issues I've seen and it's still plugged in from when we first unboxed it.
