Electro-Voice QRX-212H/75-WH
12" Two-Way Speaker, 600 Watt @ 4Ohms, White

OUR PART #:  QRX-212H/75-WH

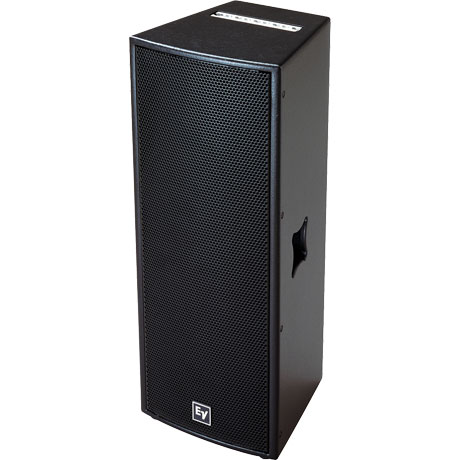

NOTE: Black speaker shown for display purposes.
Learn More
Our Price: $2,249.00
Write the first review.
Electro-Voice QRX-212H/75-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

NOTE: Black speaker shown for display purposes.

The QRx 212/75 is a dual 12“, two-way loudspeaker system with 600-watt continuous power handling (2400-watt peak) in a trapezoidal enclosure. A five-sided “H“ version is also available with a center HF section which is perfect for monitor or under-balcony applications.

Features:

  • Designed for Club Sound, Concert Sound, Pro Music, and other applications.
  • 2-Way Highest-Output Full-range
  • High Sensitivity
  • Ultra-linear frequency response
  • Extended bass response down to 50 Hz (-10 dB)
  • Vented LF enclosure
  • Asymmetric CD-horn aimed downward by 10°
  • 3” voice coil (titanium diaphragm)
  • Protection circuits for HF-driver and LF-woofers
  • Easy external operation mode selection
  • Trapezoidal (10° per side)

Specifications

  • Chassis Size 304.8 mm (12")
  • Color Black
  • Color White
  • Input Connections Parallel Neutrik® NL4
  • Speaker Type Fullrange
  • Speaker Type Mid-High
  • Speaker Type Two-Way
  • Frequency Response (-3 dB) 50 - 15000 Hz
  • Frequency Response (-10 dB) 43 - 18000 Hz
  • Internal Crossover No
  • Internal Crossover Yes
  • Sensitivity 1 W/1 m 102 dB
  • Max. SPL/1m (calc) 136 dB
  • Coverage
  • (Nominal -6 dB) H° 75 °
  • Coverage
  • (Nominal -6 dB) V° 50 °
  • System Power Handling (Continuous/Program/Peak) 600 Watts
  • LF Transducer (2) DL12BFH
  • Low Frequency Power Handling (Continuous/Program/Peak) 600 Watts
  • High Frequency Power Handling (Continuous/Program/Peak) 75 Watts
  • LF Nominal Impedance 4 O
  • HF Transducer DH-7
  • HF Nominal Impedance 8 O
  • Nominal Impedance (Passive) 4 O
  • Flying Yes
  • Outdoor No
  • Height 990 mm (38.98")
  • Width 390 mm (15.35")
  • Depth 375 mm (14.76")
  • Weight Net 36.5 kg (80.47 lbs)
