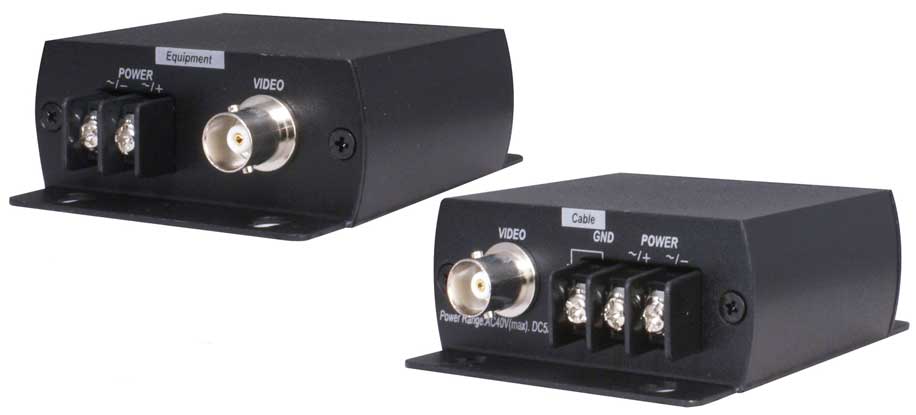

Speco Technologies SPVP
Video and Power Surge Protector

OUR PART #:  SPVP

The SPVP from Speco is a Video and Power Surge Protector.
Learn More
Our Price: $88.80
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Speco Technologies SPVP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SPVP from Speco is a Video and Power Surge Protector.

FEATURES

  • Protect equipment from high voltage surges from nearby lightning strikes
  • Two stage protection: under 1ns-90V, over 10ns-12V
  • Wide range of applications: CCTV/CATV system, television antennas, FM receivers, video cameras, monitors, multiplexers & Quad processors, VCRS, etc.
  • Surge Protection Attack Time: 1ns
  • Maximum Surge Current: 4kV
  • Surge Life: 300 surges of 100A
  • Band Pass: 0~1GHz
  • Power Passing Capability: 130VAC/DC 65Vrms at 10A
  • Insertion Loss: Less than 0.2dB
  • Return Loss (75 ohms): 16dB
  • 3-pin Terminal +BNC female to 2 pin terminal + BNC female
  • High-frequency for both CCTV and CATV use
  • Power Input: AC40V (max), DC56V (max)
  • Dimensions: 3.44" x 2.44" x 1"
