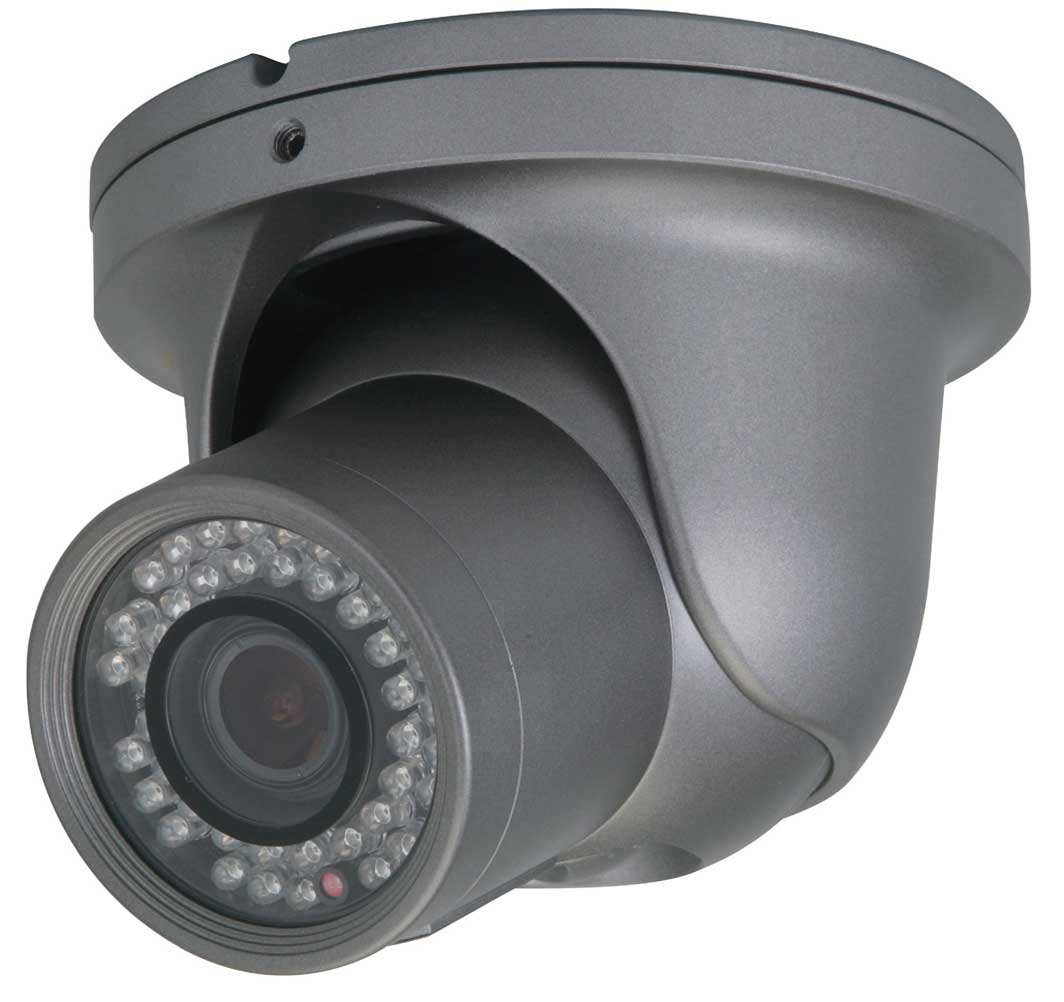

Speco Technologies CVC5845DNV
Dome Camera IR Vandal-Resistant Turret

OUR PART #  CVC5845DNV

Our Price: $608.50
Usually ships in 7-14 business days.
Need it sooner? Call us!

Intense-IR Series Tamper/Weather Resistant Color Day/Night Dome Camera.

FEATURES

  • 1/3" Sony Super - HAD II CCD
  • 3D-DNR (Sense-Up) - Sharp Image Under Ultra Low Light Level
  • Intense-IR Function - Non Saturated, Vivid Image
  • Defect Function - Elimination of White Spots
  • HSBLC (High Light Supression BLC)
  • Privacy Zone
  • Third-Generation DSP Chip
  • ICR - Removeable IR Cut Filter
  • Convenient On-Screen Display (OSD) Function Controls
  • 32x Digital Zoom
  • Dual Voltage (24VAC / 12VDC)
  • 5 Year Manufacturer's Warranty

SPECIFICATIONS

  • Image Sensor: 1/3” Sony Super-HAD II™ CCD
  • Resolution: 600 TV lines
  • Minimum Illumination: 0.000006 Lux (IR LEDs ON)
  • Lens: 2.8-12mm auto iris varifocal lens
  • Number of IR LEDs: 42
  • IR Range: Up To 90’
  • White Balance: ATW / AWB / Manual / AWC SET
  • Gain Control: High, Middle, Low, Off Selectable
  • S/N (Y-signal): 52dB (AGC Off, Weight On)
  • Backlight: OFF / HSBLC / BLC Selectable
  • Effective Pixels: 768(H) x 494(V)
  • Electronic Shutter Speed: AUTO (1/50, 1/60 sec. ~ 1/100,000 sec.)
  • OSD: Built-In
  • 3 DNR: Off/On (1~50 Levels Adjustable)
  • D-WDR: Indoor / Outdoor / Off
  • Sharpness: 0~31’ (Level Adjustable)
  • Privacy: On/Off (8 Zones)
  • Total Pixels: 811(H) x 508(V)
  • Scanning System: 2:1 Interlace
  • Synchronization: Internal / Line-Lock
  • Motion Detection: On/Off (4 Zones, Alarm Output)
  • Sense-Up: Off / Auto (Selectable Limit x2 ~ x256)
  • Mirror: Off / Mirror / V-Rev / Rotate
  • Freeze: On/Off
  • D&N Selection: Color / BW / Auto/EXT
  • Digital Zoom: On (x32) / Off
  • Blemish Compensation: Auto: 128 Point/Manual:4 Point Power
  • Dual Voltage: (24VAC / 12VDC)
  • Power Consumption: 12VDC 250mA (CDS OFF) // 12VDC 700mA (CDS ON) // 24VAC 100mA (CDS OFF) // 24VAC 250mA (CDS ON)
  • Operating Temperature/Humidity: 14° F ~ 122° F, RH 95% max.
  • Storage Temperature/Humidity: -4° F ~ 140° F, RH 95% max.
  • Dimensions: 5” W x 4.3” H x 5” D
  • Weight: 3 lbs.

Speco Technologies CVC5845DNV
Dome Camera IR Vandal-Resistant Turret

OUR PART #  CVC5845DNV

Product Information:

Intense-IR Series Tamper/Weather Resistant Color Day/Night Dome Camera.

FEATURES

  • 1/3" Sony Super - HAD II CCD
  • 3D-DNR (Sense-Up) - Sharp Image Under Ultra Low Light Level
  • Intense-IR Function - Non Saturated, Vivid Image
  • Defect Function - Elimination of White Spots
  • HSBLC (High Light Supression BLC)
  • Privacy Zone
  • Third-Generation DSP Chip
  • ICR - Removeable IR Cut Filter
  • Convenient On-Screen Display (OSD) Function Controls
  • 32x Digital Zoom
  • Dual Voltage (24VAC / 12VDC)
  • 5 Year Manufacturer's Warranty

SPECIFICATIONS

  • Image Sensor: 1/3” Sony Super-HAD II™ CCD
  • Resolution: 600 TV lines
  • Minimum Illumination: 0.000006 Lux (IR LEDs ON)
  • Lens: 2.8-12mm auto iris varifocal lens
  • Number of IR LEDs: 42
  • IR Range: Up To 90’
  • White Balance: ATW / AWB / Manual / AWC SET
  • Gain Control: High, Middle, Low, Off Selectable
  • S/N (Y-signal): 52dB (AGC Off, Weight On)
  • Backlight: OFF / HSBLC / BLC Selectable
  • Effective Pixels: 768(H) x 494(V)
  • Electronic Shutter Speed: AUTO (1/50, 1/60 sec. ~ 1/100,000 sec.)
  • OSD: Built-In
  • 3 DNR: Off/On (1~50 Levels Adjustable)
  • D-WDR: Indoor / Outdoor / Off
  • Sharpness: 0~31’ (Level Adjustable)
  • Privacy: On/Off (8 Zones)
  • Total Pixels: 811(H) x 508(V)
  • Scanning System: 2:1 Interlace
  • Synchronization: Internal / Line-Lock
  • Motion Detection: On/Off (4 Zones, Alarm Output)
  • Sense-Up: Off / Auto (Selectable Limit x2 ~ x256)
  • Mirror: Off / Mirror / V-Rev / Rotate
  • Freeze: On/Off
  • D&N Selection: Color / BW / Auto/EXT
  • Digital Zoom: On (x32) / Off
  • Blemish Compensation: Auto: 128 Point/Manual:4 Point Power
  • Dual Voltage: (24VAC / 12VDC)
  • Power Consumption: 12VDC 250mA (CDS OFF) // 12VDC 700mA (CDS ON) // 24VAC 100mA (CDS OFF) // 24VAC 250mA (CDS ON)
  • Operating Temperature/Humidity: 14° F ~ 122° F, RH 95% max.
  • Storage Temperature/Humidity: -4° F ~ 140° F, RH 95% max.
  • Dimensions: 5” W x 4.3” H x 5” D
  • Weight: 3 lbs.
