McCauley IN.LINE N120 2-Way High/Mid System Line Array Module

OUR PART #: INLINE-N120

Copied to clipboard

McCauley Sound's N120 is part of their IN.LINE™ series of high-performance... ...Read more

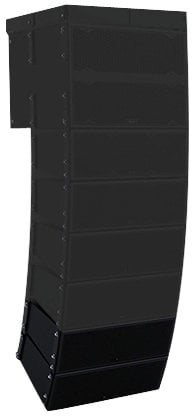

McCauley IN.LINE N120 2-Way High/Mid System Line Array Module Image 1
McCauley IN.LINE N120 2-Way High/Mid System Line Array Module

Call for price! Not available online.

(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

McCauley Sound's N120 is part of their IN.LINE™ series of high-performance, high-fidelity sound reinforcement systema which combine the superior sound reproduction qualities of a line array with the versatility and affordability that installers require. The N120 features a 120° horizontal coverage pattern.

The N120 is a 2-way high/mid system line array module in a computer optimized enclosure. The N120 utilizes a 3-way biamplified complement of twin 8.8" cone drivers and a 1" exit extended high frequency compression driver. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. All IN.LINE™ Modules ship with simplified rigging system which is designed to be set once and permanently installed. Perforated steel is employed for frontal protection of the loud speaker complement, hidden behind an attractive foam face.

The IN.LINE Series

What makes this series unique is that even though each full range module features a different horizontal coverage pattern, each IN.LINE™ module is engineered to operate in tangent with any other IN.LINE™ module, when deployed within the same "line array" column. All three IN.LINE™ modules can be combined in the same column to create seamless vertical coverage, (as determined by the size and curvature of the array) because all three full range modules have been designed to couple acoustically and form a single, undisrupted wavefront regardless of which horizontal patterns are chosen. Now, with the IN.LINE™ series, sound designers now have the ability to take advantage of the increased intelligibility, coherence and consistency of coverage that a line array solution can offer, yet can still create the highly specialized coverage patterns that the majority of complex acoustic installations require. Because sound designers can "mix and match" horizontal dispersion patterns within the same array, coverage zones can be easily defined and highly targeted, reducing unwanted reflections and acoustic "overspill", all while maintaining a perfectly coherent vertical coverage pattern and highly consistent sound from the nearest listening position to the back of the room.

Finally, the IN.LINE™ series features a price point which is competitive enough to allow contractors and their customers to realistically make the transition from traditional loudspeaker clusters to a line array technology without jeopardizing the contractor's ability to win bids.

Applications:

  • General staging
  • Large church
  • Live music club
  • Live performance theater
  • Mega church

Features:

  • IN.LINE Permanant Installation Rigging
  • Frequency Adaptive Steering
  • Lightweight Design
  • Low Profile Cell Design
  • Arrayable Pattern
  • Optimized for Intelligibility
  • Optional White Finish
  • Dual Terminal-Strip Connectors
  • McCauley Performance Class Componentry
  • Perforated Steel Grill
  • 12-Ply Dadoed Construction
  • Durable ProCoat Elastomeric Finish

Specifications:

  • Class: Full Range
  • Coverage: 120°
  • Freq. Response (-3 dB): 60 Hz - 18 kHz
  • Low Freq. Response (-10 dB): 55 Hz
  • Power Handling (AES):
    • Low: 800W
    • High: 120W
  • Power Handling (RMS):
    • Low: 400W
    • High: 60W
  • Max Peak SPL:
    • Low: 132 dB
    • High: 132 dB
  • Max Continuous SPL:
    • Low: 126 dB
    • High: 126 dB
  • Impedance:
    • Low: 16 Ω
    • High: 16 Ω
  • Sensitivity:
    • Low: 97 dB
    • High: 105 dB
  • Critical Filter / Crossover Data:
    • Crossover High: 1.5 kHz
  • Construction:
    • Method: CNC Machined, Dadoed
    • Material: 12-Ply Birch
    • Finish: Procoat, White Paint, Unfinished
  • Dimensions: 27.3" x 10.17" x 18" (693.42 x 258.32 x 457.2mm)
  • Net Weight: 62.05 lbs. (28.14kg)
  • Shipping Dimensions: 22" x 14" x 32" (558.8 x 355.6 x 812mm)
  • Shipping Weight: 67 lbs. (30.39 kg)
  • Taper Angle: 5°
  • Taper Width: 7.09" (180.09mm)
  • Design Properties:
    • Characteristics: 2-Way, Line Array, Mid-Throw,Long-Throw, Vented, Cone Driver, Compression Driver, Direct Radiating
    • Powering Options: Bi-Amp
  • Hardware:
    • Connectors: NL4, Terminal Strips (4)
    • Grill Type: Acoustically Transparent Foam, Fitted Perforated Steel
