Williams Sound PPA-VP37-00
Value Pack System WITHOUT Earphones

OUR PART #  PPA-VP37-00

Our Price: $912.00
List Price: $1,014.00
You save 10%! (Low Price Guarantee)
In Stock

**NOTE: The Personal PA Value Pack System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government's radio regulations for 72-76MHz operation.**

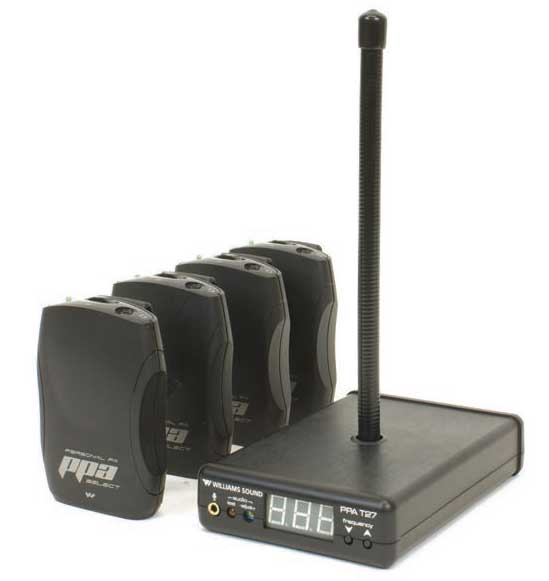

Williams Sound's Personal PA Value Pack System broadcasts a speaker's voice, music program, or audio service wirelessly up to 1,000' to a listening audience. Participants using the (included) NEW PPA Select single-channel receiver with a headset can listen to the broadcast at the volume of their comfort level. The cornerstone of the PPA Value Pack System is the T27 transmitter, featuring an LED display panel and push-button channel selection for easy operation. The Personal PA Value Pack system has 17 available channels, and operates on 72-76MHz. Meets Americans With Disabilities Act (ADA) accessibility requirements.

Applications:

  • Theaters
  • Cinemas
  • Houses of Worship
  • Auditoriums
  • Schools Stadiums/Arenas
  • Zoos
  • Other places of Public Access

Kit Contents:

  • 1x PPA-T27 Receiver
  • 4x NEW PPA SELECT R37 Receivers with BAT-001 AA Batteries
  • 1x IDP-008 Wall Plaque
  • 1x WCA-013 Audio Cable
  • 1x ANT-021 Antenna
  • 1x TFP-036 Power Supply

Specifications:

PPA-T27 Transmitter

  • Dimensions: 4.1" W x 6.1" L x 1.3" H
  • Color: Black
  • Power: 105-130VAC, 50-60Hz, 3.2W at 120VAC
  • Operating Frequencies:  72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7
    (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
  • Frequency Selector: External switches, 17 channels (lockable)
  • RF Field Strength: Does not exceed 80mV/m @ 3m
  • Nominal Range: Up to 500' with standard ANT-021 "rubber duckie" antenna // up to 1000' with optional ANT-005 coaxial antenna
  • Modulation: FM, 75kHz deviation (wide-band) max.
  • Stability: +/-.0055 over 32-122 degrees F
  • Pre-Emphasis: 75uS
  • Frequency Response: 85Hz - 14kHz +/-3dB
  • Distortion: 1% max. THD
  • Signal to Noise Ratio: 65dB with PPA R37 Receiver
  • Microphone Input: 1/8" mini phone jack, supplies +DC for electret mics
  • Mic Input Level: 1-10mV, nominal
  • Line-Level Input: RCA Jack, Hi Z, unbalanced
  • Line Input Level: .1-1Vrms
  • Input Attenuator: Pot, screwdriver-adjustable
  • Antenna Outputs: Thread mount for ANT-021 "rubber duckie" antenna or ANT-025 telescoping antenna // RF connector for ANT-024 dipole or ANT-005 coaxial antenna
  • Approvals: FCC, Industry Canada, RoHS, WEEE
  • Warranty: Manufacturer's five years parts and labor, 90 days on cords, earphones, headphones, batteries and other accessories

PPA-R37 Receiver

  • Dimensions: 4.1" H x 2.85" W x 1.38" D
  • Weight: 4.6 oz with batteries, 2.6 oz without batteries
  • Color: Black
  • Battery Type: Two AA non-rechargeable alkaline batteries (BAT-001), approx 48 hours of battery life; or Two AA rechargeable NiMH batteries (BAT-026), 1500mAh, approx. 30 hours of battery life.
  • Current Consumption: Nominal 52mA
  • Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7
    (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
  • FM Deviation: +75kHz
  • LED Indicator: Power on: Bright Green. Low Battery: Flashes
  • Sensitivity: 2uV at 12dB Sinad with squelch defeated
  • Input Overload: 100mV
  • Frequency Response: 200Hz to 15kHz, +/-3dB
  • Signal-to-Noise Ratio: 65dB at 100uV
  • Receive Antenna: Integral with earphone/headphone cord
  • Audio Output: 35mW, 16ohm load
  • Output Connector: 1/8" stereo phone jack, accepts either stereo or mono plug
  • Approvals: FCC, Industry Canada, RoHS, WEEE
  • Warranty: Manufacturer's 5 years parts and labor, 90 days on cords, earphones, headphones, batteries or other accessories

Williams Sound PPA-VP37-00
Value Pack System WITHOUT Earphones

OUR PART #  PPA-VP37-00

Product Information:

**NOTE: The Personal PA Value Pack System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government's radio regulations for 72-76MHz operation.**

Williams Sound's Personal PA Value Pack System broadcasts a speaker's voice, music program, or audio service wirelessly up to 1,000' to a listening audience. Participants using the (included) NEW PPA Select single-channel receiver with a headset can listen to the broadcast at the volume of their comfort level. The cornerstone of the PPA Value Pack System is the T27 transmitter, featuring an LED display panel and push-button channel selection for easy operation. The Personal PA Value Pack system has 17 available channels, and operates on 72-76MHz. Meets Americans With Disabilities Act (ADA) accessibility requirements.

Applications:

  • Theaters
  • Cinemas
  • Houses of Worship
  • Auditoriums
  • Schools Stadiums/Arenas
  • Zoos
  • Other places of Public Access

Kit Contents:

  • 1x PPA-T27 Receiver
  • 4x NEW PPA SELECT R37 Receivers with BAT-001 AA Batteries
  • 1x IDP-008 Wall Plaque
  • 1x WCA-013 Audio Cable
  • 1x ANT-021 Antenna
  • 1x TFP-036 Power Supply

Specifications:

PPA-T27 Transmitter

  • Dimensions: 4.1" W x 6.1" L x 1.3" H
  • Color: Black
  • Power: 105-130VAC, 50-60Hz, 3.2W at 120VAC
  • Operating Frequencies:  72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7
    (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
  • Frequency Selector: External switches, 17 channels (lockable)
  • RF Field Strength: Does not exceed 80mV/m @ 3m
  • Nominal Range: Up to 500' with standard ANT-021 "rubber duckie" antenna // up to 1000' with optional ANT-005 coaxial antenna
  • Modulation: FM, 75kHz deviation (wide-band) max.
  • Stability: +/-.0055 over 32-122 degrees F
  • Pre-Emphasis: 75uS
  • Frequency Response: 85Hz - 14kHz +/-3dB
  • Distortion: 1% max. THD
  • Signal to Noise Ratio: 65dB with PPA R37 Receiver
  • Microphone Input: 1/8" mini phone jack, supplies +DC for electret mics
  • Mic Input Level: 1-10mV, nominal
  • Line-Level Input: RCA Jack, Hi Z, unbalanced
  • Line Input Level: .1-1Vrms
  • Input Attenuator: Pot, screwdriver-adjustable
  • Antenna Outputs: Thread mount for ANT-021 "rubber duckie" antenna or ANT-025 telescoping antenna // RF connector for ANT-024 dipole or ANT-005 coaxial antenna
  • Approvals: FCC, Industry Canada, RoHS, WEEE
  • Warranty: Manufacturer's five years parts and labor, 90 days on cords, earphones, headphones, batteries and other accessories

PPA-R37 Receiver

  • Dimensions: 4.1" H x 2.85" W x 1.38" D
  • Weight: 4.6 oz with batteries, 2.6 oz without batteries
  • Color: Black
  • Battery Type: Two AA non-rechargeable alkaline batteries (BAT-001), approx 48 hours of battery life; or Two AA rechargeable NiMH batteries (BAT-026), 1500mAh, approx. 30 hours of battery life.
  • Current Consumption: Nominal 52mA
  • Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7
    (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
  • FM Deviation: +75kHz
  • LED Indicator: Power on: Bright Green. Low Battery: Flashes
  • Sensitivity: 2uV at 12dB Sinad with squelch defeated
  • Input Overload: 100mV
  • Frequency Response: 200Hz to 15kHz, +/-3dB
  • Signal-to-Noise Ratio: 65dB at 100uV
  • Receive Antenna: Integral with earphone/headphone cord
  • Audio Output: 35mW, 16ohm load
  • Output Connector: 1/8" stereo phone jack, accepts either stereo or mono plug
  • Approvals: FCC, Industry Canada, RoHS, WEEE
  • Warranty: Manufacturer's 5 years parts and labor, 90 days on cords, earphones, headphones, batteries or other accessories
