Kramer SG6005XL
Multi-Standard Composite Video Black Burst, Color Bar & Audio Tone Generator


The SG-6005xl is a broadcast quality black burst, color bar, sync, and audio tone generator for composite video and audio applications.
Learn More
Sale Price: $964.39
List Price: $1,995.00
You save 52%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Kramer SG6005XL
In Stock

Similar Products

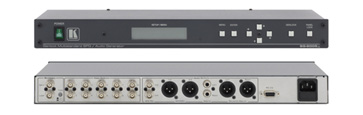

The SG-6005xl is a broadcast quality black burst, color bar, sync, and audio tone generator for composite video and audio applications. The unit outputs ten composite video and two AES-3id audio signals on BNC connectors, two balanced stereo and two AES/EBU audio signals on XLR connectors; and an unbalanced stereo audio signal on two RCA connectors. The unit can be genlocked to an external video source.
  • 10 composite video outputs
  • 8 Color bar patterns
  • Ultra stable - 1ppm frequency tolerance
  • Color bar or Black burst (output selectable)
  • SCH/Phase adjust
  • Looping analog Genlock input - For sync and color locking
  • Selectable sync input signal termination
  • Audio outputs - Balanced (2 XLR), unbalanced (2 RCA), AES-3id (2 BNC) & AES/EBU (2 XLR)
  • Frequency & amplitude adjustable
  • Control - Front panel & RS-232
  • 1U rack "ears" included


  • Inputs: 1 REF (genlock), looping, 1Vpp/75?, on BNC connectors with a termination switch.
  • Outputs: 10 composite video on BNC connectors, globally configurable: black burst 0.3Vpp/75? (sync) or 1Vpp/75? max (color bar); 1 balanced stereo audio on 2 XLR connectors, 12dBu max; 1 unbalanced stereo audio on 2 RCA connectors, 6dBu max; 2 AES/EBU digital audio on XLR connectors, 0dBFS max; 2 AES-3id (75?) digital audio on BNC connectors, 0dBFS max.
  • Video Standards: PAL & NTSC
  • Color Bar: 8 selectable patterens
  • Stability: 1 ppm
  • S/N Ratio: Video: >73dB (black burst); Audio: >89dB.
  • Digitization: Video: 10 bits, 27 MHz; Audio: frequency out: 10Hz to 20kHz; audio analog range: 31dBu; audio digital range: 31dBFS; each channel may be set to silent; Control via front panel (OSD) and RS-232; Buttons for genlock, panel lock, input termination.
  • Indicators: Multi-character display on the front panel
  • Weight: 5.5 lbs approx
  • Accessories: Power cord, null-modern adapter, rack "ears"
