OUR PART # ISO1
Use it to isolate lines to fight hum and buzz in broadcast or live sound applications, or convert unbalanced lines to balanced for long cable runs. A ground lift switch is provided to disconnect the input ground to the output.

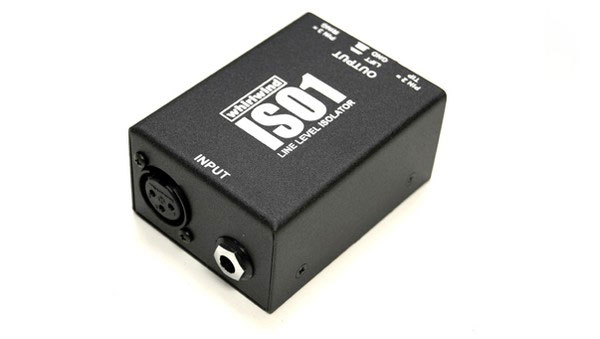

The Whirlwind ISO1 is a high quality line level audio transformer device. Use it on console outputs, amplifier input feeds or any line level signal for transformer isolation and ground lifting to overcome buzz and hum problems. Use it as a balancer to convert between balanced XLR and unbalanced 1/4? signals. The ISO1 uses Whirlwind's TRSP- 600L transformer with a frequency response of ?1 dB from 20 to 20 kHz at +20 dBm input level.
IN AND OUT JACKS
Either of the two input and output connectors, XLR or ?? TRS jack (Tip = Pin 2, Ring = Pin 3) can be used for connection to line level signals. The two input jacks are connected in parallel with each other, as are the two output jacks. Use only one connector on each side at a time.
GROUND LIFT SWITCH
This switch disconnects the ground between the input connectors and the output connectors when set to the LFT position. The ground is connected through when the switch is in the GND position.
