Ceiling-Mount Receiver for IR702T


Our Price: $278.60
List Price: $344.76
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

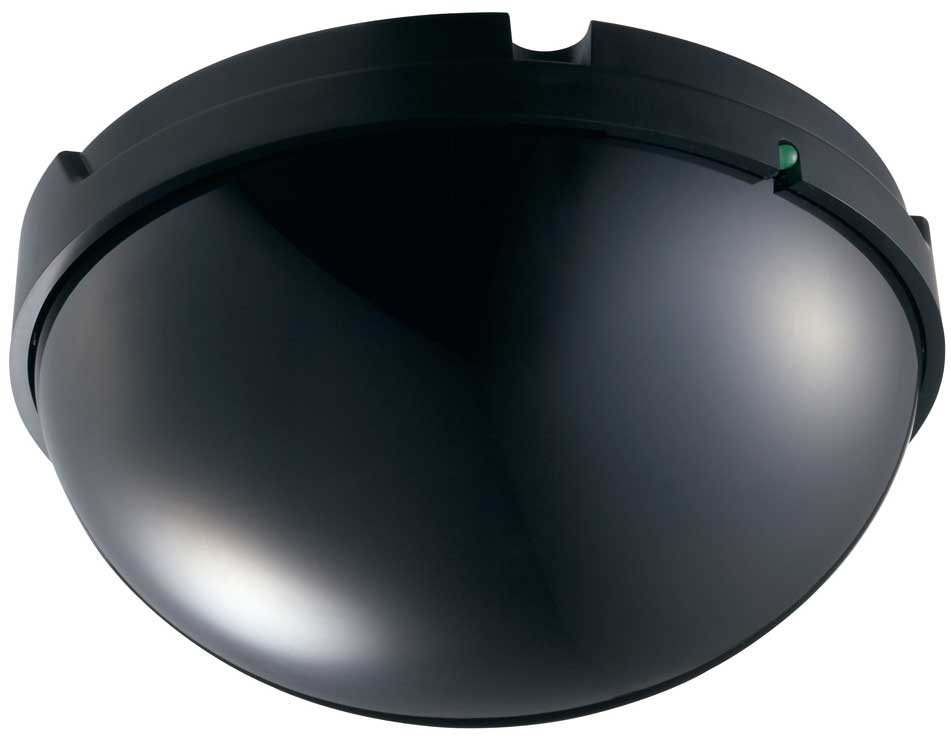

The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.


  • Ceiling-Mount brackets included
  • Equipped with power indicator LED
  • Covers a practical radius of approximately 26'



  • Power Source: 24VDC (Supplied from the IR-702T)
  • Current Consumption: Max. 60mA
  • Connection Terminal: 75Ohm BNC jack
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Filter Section - Polycarbonate, optical cut filter // Base - ABS resin, black
  • Dimensions: 4.72" x 2.81"
  • Weight: 0.45lb
  • Accessory: Mounting bracket (1)

Infrared Detector

  • Wavelength: 870nm
  • Carrier Frequency: Channel A - 3.100MHz // Channel B - 3.350MHz
  • Reception Area: Practical range of approx. 26' in an unobstructed space



Click to download

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
