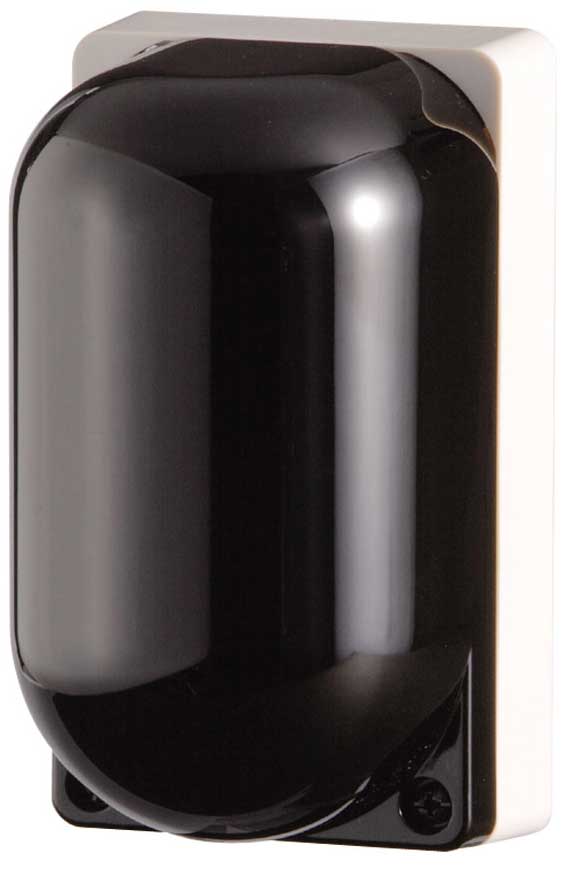

TOA IR-500R
Receiver for IR702T

OUR PART #  IR500R

Our Price: $191.34
List Price: $236.78
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The IR-500R Infrared Wireless Receivere is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.

FEATURES

  • Wall-mounting brackets included
  • Can be installed in an electrical circuit box
  • Equipped with power indicator LED
  • Reception area is up to approximately 49' line-of-site
  • Infrared light reception angle can be changed

SPECIFICATIONS

General

  • Power Source: 24VDC (supplied from the IR-702T)
  • Current Consumption: Max. 40mA

Infrared Detector

  • Wavelength: 870nm
  • Carrier Frequency: Channel A: 3.100MHz // Channel B: 3.35MHz
  • Reception Angle: Vertical: 80 degrees (up to 30 degrees movable downward) // Horizontal: 80 degrees (up to 30 degrees movable left or right)
  • Reception Area: Approx. 50' in a space without any obstacles
  • Connection Terminal: 75 Ohm, BNC Jack
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Filter section: Polycarbonate, optical cut filter // Base: ABS resin, off-white
  • Dimensions: 2.76" x 4.72" x 2.83"
  • Weight: 0.49lb

Click to download

TOA IR-500R
Receiver for IR702T

OUR PART #  IR500R

Product Information:

The IR-500R Infrared Wireless Receivere is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.

FEATURES

  • Wall-mounting brackets included
  • Can be installed in an electrical circuit box
  • Equipped with power indicator LED
  • Reception area is up to approximately 49' line-of-site
  • Infrared light reception angle can be changed

SPECIFICATIONS

General

  • Power Source: 24VDC (supplied from the IR-702T)
  • Current Consumption: Max. 40mA

Infrared Detector

  • Wavelength: 870nm
  • Carrier Frequency: Channel A: 3.100MHz // Channel B: 3.35MHz
  • Reception Angle: Vertical: 80 degrees (up to 30 degrees movable downward) // Horizontal: 80 degrees (up to 30 degrees movable left or right)
  • Reception Area: Approx. 50' in a space without any obstacles
  • Connection Terminal: 75 Ohm, BNC Jack
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Filter section: Polycarbonate, optical cut filter // Base: ABS resin, off-white
  • Dimensions: 2.76" x 4.72" x 2.83"
  • Weight: 0.49lb

Click to download
