TOA IR-200M
Microphone,Handheld Wireless

OUR PART #  IR200M

Our Price: $221.95
List Price: $274.67
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

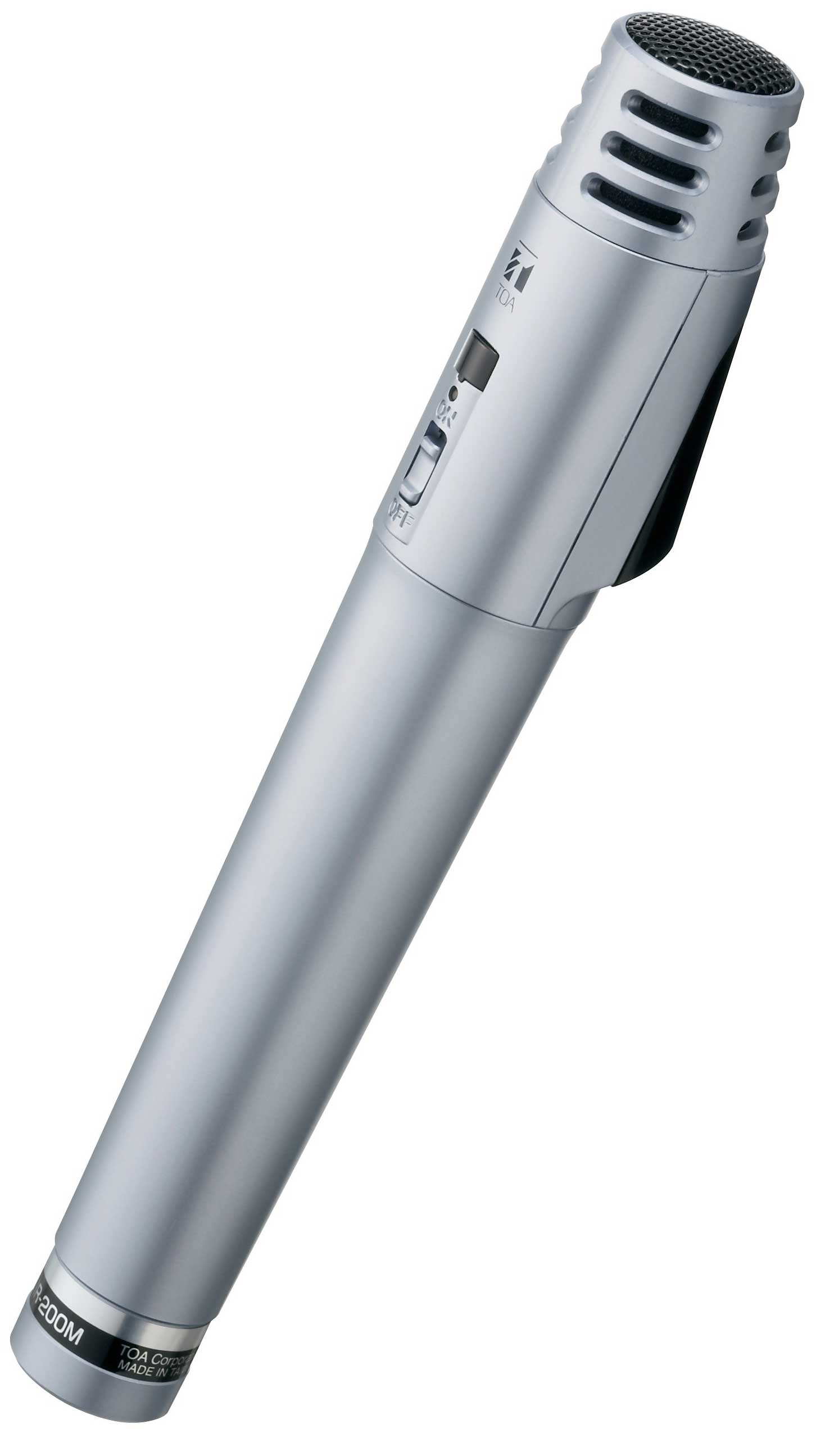

The IR-200M is a handheld infrared wireless microphone. It eliminates problems with interference or eavesdropping, allowing simulatneous use in adjacent conference rooms or school classrooms. Since infrared wireless microphone systems us a frequency band that does not interfere with that of the TS-800 and TS-900 series infrared conference system, both systems can be simultaneously installed in the same location.

FEATURES

  • Designed for stable voice transmission
  • Lightweight body
  • Adjustable infrared light emission at 2 levels
  • Two selectable channel frequencies
  • Antibacterial treatment
  • Employs an electret condenser microphone unit
  • Low battery indicator

SPECIFICATIONS

General

  • Battery: IR-200BT-2 rechargeable battery for the infrared wireless microphone (option) or AA alkaline dry cell battery (2 pieces)
  • Current Consumption: typ. 250mA (2.4V, Power selector switch: N) // Typ. 340mA (2.4V, Power selector switch: H)
  • Tone Signal: 32.768kHz
  • Modulation Sensitivity: +/-4.8kHz (1kHz, when SPL of 84dB is input)
  • Maximum Input Sound Pressure: 120dB SPL
  • Microphone Unit: Unidirectional electret condenser microphone
  • Frequency Response: 100Hz - 12kHz
  • Preemphasis: 300us
  • Battery Operation Time: Approx. 8 hours (w/ rechargeable battery & power switch set to N) // Approx. 6 hours (w/ alkaline battery & power switch set to N)
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Control Section: ABS resin, metallic gray, paint, 50% gloss // Filter Section: Polycarbonate, optical cut filter
  • Dimensions: 1.46" x 9.52"
  • Weight: 0.37lbs (with battery)
  • Accessories: 1 Screw driver (for setting), 1 color label (6 colors)

Infrared Emitter

  • Wavelength: 870nm (AM: Brightness modulation)
  • Modulation Method: Frequency modulation
  • Carrier Frequency: Channel A: 3.1MHz // Channel B: 3.350MHz
  • Transmission Distance: Approx 65' (Power selector switch: H, in an unobstructed space) // Approx. 50' (power selector switch: N, in an unobstructed space)



Click to download

TOA IR-200M
Microphone,Handheld Wireless

OUR PART #  IR200M

Product Information:

The IR-200M is a handheld infrared wireless microphone. It eliminates problems with interference or eavesdropping, allowing simulatneous use in adjacent conference rooms or school classrooms. Since infrared wireless microphone systems us a frequency band that does not interfere with that of the TS-800 and TS-900 series infrared conference system, both systems can be simultaneously installed in the same location.

FEATURES

  • Designed for stable voice transmission
  • Lightweight body
  • Adjustable infrared light emission at 2 levels
  • Two selectable channel frequencies
  • Antibacterial treatment
  • Employs an electret condenser microphone unit
  • Low battery indicator

SPECIFICATIONS

General

  • Battery: IR-200BT-2 rechargeable battery for the infrared wireless microphone (option) or AA alkaline dry cell battery (2 pieces)
  • Current Consumption: typ. 250mA (2.4V, Power selector switch: N) // Typ. 340mA (2.4V, Power selector switch: H)
  • Tone Signal: 32.768kHz
  • Modulation Sensitivity: +/-4.8kHz (1kHz, when SPL of 84dB is input)
  • Maximum Input Sound Pressure: 120dB SPL
  • Microphone Unit: Unidirectional electret condenser microphone
  • Frequency Response: 100Hz - 12kHz
  • Preemphasis: 300us
  • Battery Operation Time: Approx. 8 hours (w/ rechargeable battery & power switch set to N) // Approx. 6 hours (w/ alkaline battery & power switch set to N)
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Control Section: ABS resin, metallic gray, paint, 50% gloss // Filter Section: Polycarbonate, optical cut filter
  • Dimensions: 1.46" x 9.52"
  • Weight: 0.37lbs (with battery)
  • Accessories: 1 Screw driver (for setting), 1 color label (6 colors)

Infrared Emitter

  • Wavelength: 870nm (AM: Brightness modulation)
  • Modulation Method: Frequency modulation
  • Carrier Frequency: Channel A: 3.1MHz // Channel B: 3.350MHz
  • Transmission Distance: Approx 65' (Power selector switch: H, in an unobstructed space) // Approx. 50' (power selector switch: N, in an unobstructed space)



Click to download
