Sonic Shock Sonic Shock 5
Anti-Theft Alarm, Full Kit


The Sonic Shock's Sonic Shock 5 system is the 5th generation Sonic Shock anti-theft alarm, and comes as a full kit with tool-less installation.
Learn More

Call for info!

Select a Model: (shipping times are approximate)

Related Products

The Sonic Shock's Sonic Shock 5 system is the 5th generation Sonic Shock anti-theft alarm, and comes as a full kit with tool-less installation. Its small 2" x 3.8" footprint makes it great for LCD projectors, but customers also use Sonic Shock 5 with smaller flat panel televisions and desktop computers (all sold separately). Sonic Shock 5 includes all the basic features of every Sonic Shock alarm - high grade forged & welded stainless steel housing, changeable core locks, robust circuitry, and noxious noise for thieves.

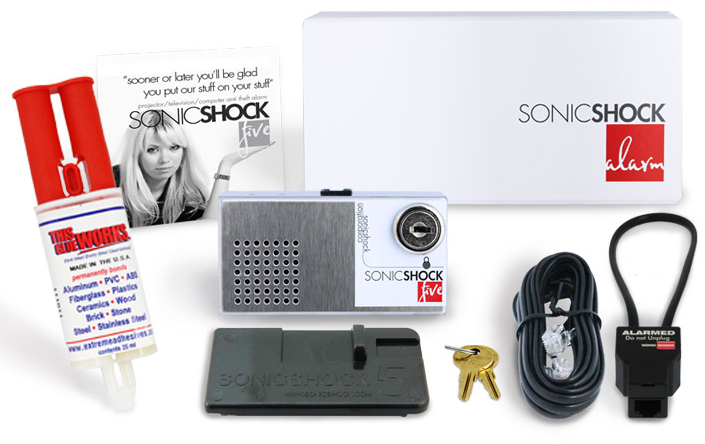

Sonic Shock Sonic Shock 5 Includes:

  • Alarm module
  • Mounting base plate
  • Electronic sensor tether
  • Ilco removable core lock
  • 9 volt industrial alkaline battery
  • (1) Methacrylate glue kit
  • (2) Keys
  • Installation & User Guide

Sonic Shock Sonic Shock 5 Features:

  • Installs without tools
  • Simple to use: To turn on, turn key right. To turn off, turn key left
  • 1mm high strength grade stainless steel: you'll break lots of titanium bits trying to drill it
  • 117dB piezo siren
  • 3500 psi impact-resistant glue. That's 50% stronger than bonding agents used on other "security" products
  • Removeable Core Lock: means that you can rekey a lock in about 10 seconds
  • No 'low battery beeps': 9V alkaline battery lasts 50 years monitoring or 2 hours full alarm
  • No false alarms

Sonic Shock Sonic Shock 5 Specifications:

  • Manufacturer Part #: 100-F
  • Applications: Anti-theft alarm for any equipment - projectors, televisions, and computers - which have a 2" x 3.8" (5 x 10cm) flat surface area for mounting.
  • Main Unit Dimensions: 2" D x 3.75" W x 1.35" H (5 x 9.5 x 3.5cm)
    • The Sonic Shock 5 is sufficiently thin to be affixed to the back of wall mounted flat panel televisions
  • Constuction: Alarm housing: 0.05" (1mm) thick 18 gauge hard grade brushed stainless steel / Mounting plate: 0.07" (3mm) thick heat-treated aluminium
  • Acoustic Generator: Custom Multice piezo siren
  • Locks: Ilco 5 wafer cam lock, Removable core, Available keyed alike or keyed differently (200 combinations), The same key can operate Sonic Shock 4, Sonic Shock Plasma, and Sonic Shock 4, 3 or 2 versions (now discontinued)
  • Power: 9V industrial alkaline battery, 650 milliamp hour capacity, 1 microamp monitoring current, 400 milliamp current at full alarm
  • Battery Life: 5+ years in monitoring mode (50 years theoretically possible), 2 hours in full alarm
  • Control Circuit: Proprietary Comprotec single purpose analog computer
  • Adhesive: Methylmethacrylate kit ("Plastic Welder"), 2 part exothermic cure non toxic structural adhesive, 3,500 psi strength on all metals and most plastics (except polypropylene), Very high impact resistance (eg. hammer blows), 4 minute working time; 80% strength in 2 hours; 100% in 24 hours, Impervious to water or solvents when cured
  • Surface Bonding Area: 6.75 square inches
  • Weight: 500 grams
