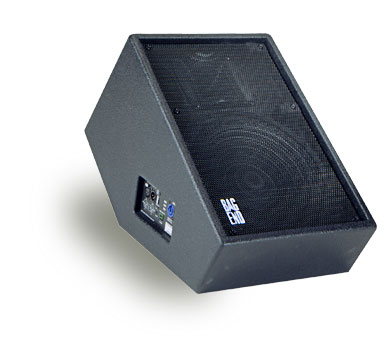

Bag End TA1202-RF
Compact Portable Full Range Loudspeaker, 200 Watt @ 8ohms

OUR PART #:  TA1202-RF

The TA1202-RF is a compact portable full range loudspeaker system offering both high fidelity and high efficiency.
Learn More
Our Price: $795.00
List Price: $935.00
You save 15%!
Write the first review.
Bag End TA1202-RF
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The TA1202-RF is a compact portable full range loudspeaker system offering both high fidelity and high efficiency. The Time-Aligned™ studio quality sound provides detail and clarity not found in other designs. Rugged Ro-Tex™ painted birch plywood enclosure, a recessed handle and durable grille mkake the TA-1202-RF an ideal choice for almost all portable monitoring applications. With flat frequendcy response and Time-Alignment™, the TA-1202-RF requires almost no equalization and delivers clear intelligible vocal reproduction with excellent gain before feedback abilities.


  • Enclosure:
    18mm 13-ply birch plywood
  • Low Frequency Transducer:
    12" Cone
    2.5" Voice coil
    80 oz. Magnet
  • High Frequency Transducer:
    1" Exit compression driver
    1.8" Titanium diaphragm
    15 oz. Magnet
    Radial horn
  • Input Connectors:
    1 - Dual banana
    2 - 1/4" Phone
    2 - Neutrik Speakon
  • Grille:
    18 Gauge black coated perforated steel   System Type:
    2-way vented 0.9 cu. ft.
  • Impedance:
    8 Ohms
  • Crossover Network:
    Passive Time-Align
    equalizer type at 2.5 kHz
  • Time Offset Between Drivers:
    < +/- 25 Microseconds
  • Frequency Response:
    75 Hz to 20 kHz ±3 dB
    (2p Steradians)
  • Sensitivity:
    101 dB SPL (1W @ 1m)
  • Dispersion:
    80 degrees Horizontal (-6 dB)
    60 degrees Vertical (-6 dB)
    (Horn may be rotated 90 degrees for a 60 degree H x 80 degree V dispersion)
  • Power Handling:
    200 W continuous sine wave
    800 W instantaneous peak   Finish:
    Black Ro-Tex™ Finish
  • Dimensions:
    21"h x 14"w x 11.5"d
    54 cm x 36 cm x 30 cm
  • Weight:
    40 lbs.
    18 kg
  • Shipping Dimensions:
    24" x 16" x 14"
    61 cm x 41 cm x 36 cm
  • Shipping Weight:
    47 lbs.
    21 kg
