Bag End TA1202-I White 12" 2-Way 300W and 8 Ohms Time-Align Installation Loudspeaker, White

The Bag End TA1202-I produces high definition high impact sound over its controlled coverage angle allowing precise effective audience coverage in a variety of venues. This point source loudspeaker, engineered for seamless short and mid throw performance is well known for exceptional fidelity and its surprisingly high output capability. It excels in speech projection and live performance PA systems as well as high level music playback systems.

Rotatable high frequency waveguide and universal fly points allow the TA1202-I to be easily installed and aimed in a multitude of applications. The rotatable 80 degree (h) by 60 degree (v) coverage pattern offers optimal coverage options for horizontal or vertical mounting.

The TA1202-I includes an internal passive Time-Align crossover and optimal venting provides a surprisingly powerful bass output. With its high-fidelity, convenient size and high output, this speaker perfect for many standalone applications. Adding Bag End subwoofers will expand its capabilities to include larger venues.

Constructed from 18mm Baltic Birch plywood the TA1202-I features a durable and attractive white Ro Tex finish, durable steel grille and multiple fly points.

Bag End TA1202-I-WHITE Specifications:

• System Type: 2-way vented
• Enclosure: 18 mm 13-ply birch plywood
• Finish: Whtie Ro Tex™ True water born environmental finish
• Grille: 16 Gauge black power coated perforated steel
• Low Frequency Components: SE-1280 12” Transducer, 2.5” Voice coil, 80 oz. Magnet
• High Frequency Components: E-700 1” Exit compression driver, 1.8” Titanium diaphragm, 15 oz. Magnet, Radial Waveguide
• Input Connector: Cinch 142 screw terminal barrier strip
• Hardware:
  • Forged steel eye bolts
  • Optional Steel Yoke
• Fly Points Safe Working Load: 200 lbs Uppermost rigging points
• Crossover Type: Passive Time-Align® equalizer type at 2.5 kHz
• Time Offset Between Driver: < ± 25 Microseconds
• Sensitivity: 101 dB SPL (2.83 V @ 1m)
• Frequency Response: 75 Hz to 20 kHz ±3 dB
• Low Frequency Limit: 65 Hz
• Maximum Calculated Continuous Acoustic Output: 127dB SPL @ 1m
• Power Handling:
  • 300 W continuous (IEC)
  • 600 W program
• Recommended Amplifier Power: 300 to 600 W at rated impedance
• Rated Impedance: 8 Ohms
• Coverage Pattern:
  • 80 degrees Horizontal (-6 dB)
  • 60 degrees Vertical (-6 dB)
  • Rotatable horn
• Recommended High Pass Filter: 60 Hz
• Polarity: A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure
• Dimensions (HxWxD): 21” x 14” x 11.5” (54cm x 36cm x 30cm)
• Weight: 42 lbs (19 kg)

NOTE:

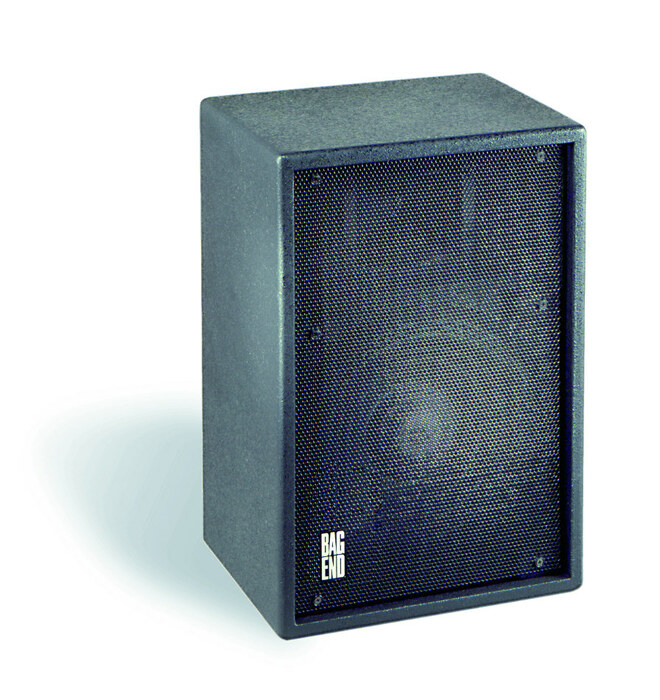

Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.
