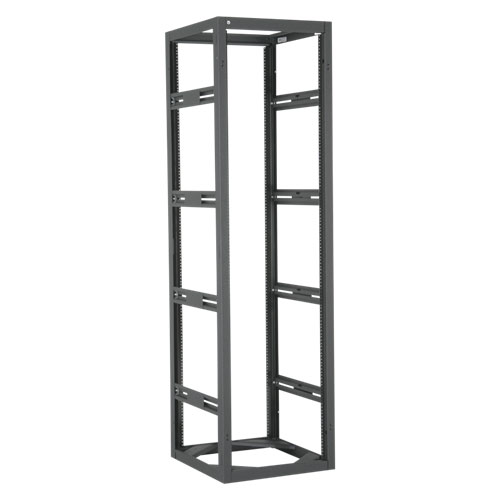

Atlas Sound 735-25
Adjustable Rail Cabinet, 35RU, 25" OD

OUR PART #:  735-25

All New 700 Series 25" Deep Welded Cabinets (UL Listed) 35RU For single and multiple bay configuration installs requiring additional weight capacity and extended depths...
Learn More
Our Price: $749.99
List Price: $936.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound 735-25
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

All New 700 Series 25" Deep Welded Cabinets (UL Listed) 35RU

For single and multiple bay configuration installs requiring additional weight capacity and extended depths, Atlas Sound
offers the 14 ga. frame construction of the 735-25. The 735-25 is 22 1/2" wide, 25" deep, and has 35 vertical panel spaces.

Multi-formed and welded frame members provide superior strength and load bearing capability. Base is constructed of
double-formed front and rear sections, MIG welded and reinforced with 11 ga. CRS corner caster gussets. Vertical columns
interlock with frame top and base adding double material thickness for superior load bearing capability. Mounting rail
channel support members are multi-formed and MIG welded for superior interlocking support. Panel mounting rails are fully
adjustable front to rear.

Base includes four 3/8"–16 threaded sockets to accept leg levelers (Models LL-1) and four 11 ga. CRS corner gussets that
are punched to accept casters. Base also has provisions to be permanently secured to the floor.

Shipped with 2 pair of 11 ga. CRS adjustable mounting rails. Rack rails are precision tapped 10–32 and recessed
1 3/16" (30mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are
standard E.I.A. 5/8"-5/8"-1/2" spacing.

Hatsections are on 19" panel spacing to accommodate vertical accessory mounting.

This cabinet sports a solid secure professional look without punched vents. Therefore, thermal air-flow design may be
precisely designed and maintained without the fear of contaminants or other foreign/damaging objects entering
through vents.

With the addition of optional Seismic Bracket, SBK-700, 700 Series Racks can be certified in accordance to the Telcordia NEBS (Network Equipment Building Systems) GR-63-CORE standard. When the SBK-7-- brackets are properly installed, the 700 Series successfully endured the rigorous real-world dynamic test - the racks are able to withstand up to a zone 4 earthquake which is comparable to Richter magnitude 8.0!

Specifications:

  • Height 65 1/2" (166.37 cm)
  • Width 220 5/16" (56.6674 cm)
  • Depth 25" (63.5 cm)
  • Rack Spaces 35
  • Usable Depth 230 9/16" (59.7662 cm)
  • UL Listed/Standard 1678

Features:

  • 35RU to 44RU heights in 25 1/2" depth
  • Heavy duty 14 ga. frame construction
  • The perfect rack to handle installations of heavy rack-mount equipment
