Radial Engineering JDV-PRE
Discrete Instrument Preamp

OUR PART #  JDV-PRE

Our Price: $449.99
List Price: $500.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

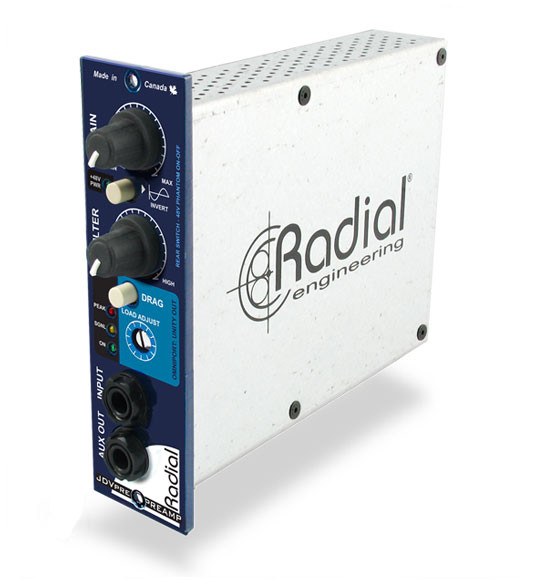

Radial Engineering's JDV-PRE is a unique preamplifier designed specifically to capture the natural tone and distinct character of the instrument.  Unlike mic preamplifiers that are centered on 'the microphone', the JDV-Pre is focused on the various types of pickups used while transferring the signal without introducing distortion or artefact of any type.

The design begins with a 100% discreet class-A amplifier for optimal signal transfer.  But unlike all other amplifier designs, the JDV-Pre's front end is completely void of the negative feedback loops normally used to stabilize the circuit.  This design eliminates the use of phase-cancellation which inevitably degrades the signal.  This is augmented with Drag Control™ load correction that allows the engineer to optimize the load on the instrument pickup for the most natural rendering.

When the impedance is set for piezo pickups, the JDV-Pre remains remarkably quiet.  Accustate gain control not only allows complete freedom over the signal path, but retains the signal-to-noise ratio at all levels.  Acoustic instruments are further advantaged with a fully variable high-pass filter that gently rolls of the low end to eliminate troublesome body resonance while allowing each instrument to sit more comfortably in the mix.  To address instrument microphones, the JDV-Pre features a transformer coupled balanced mic input with available 48V phantom power for condenser microphones.  Connection is made via standard 500 series rack XLR input.

Radial Engineering JDV-PRE Features:

  • 100% discrete class-A instrument and mic preamp
  • Feed forward front-end, void of negative feedback
  • AccuState gain control for low noise at all levels
  • Variable low frequency cut for acoustic instruments
