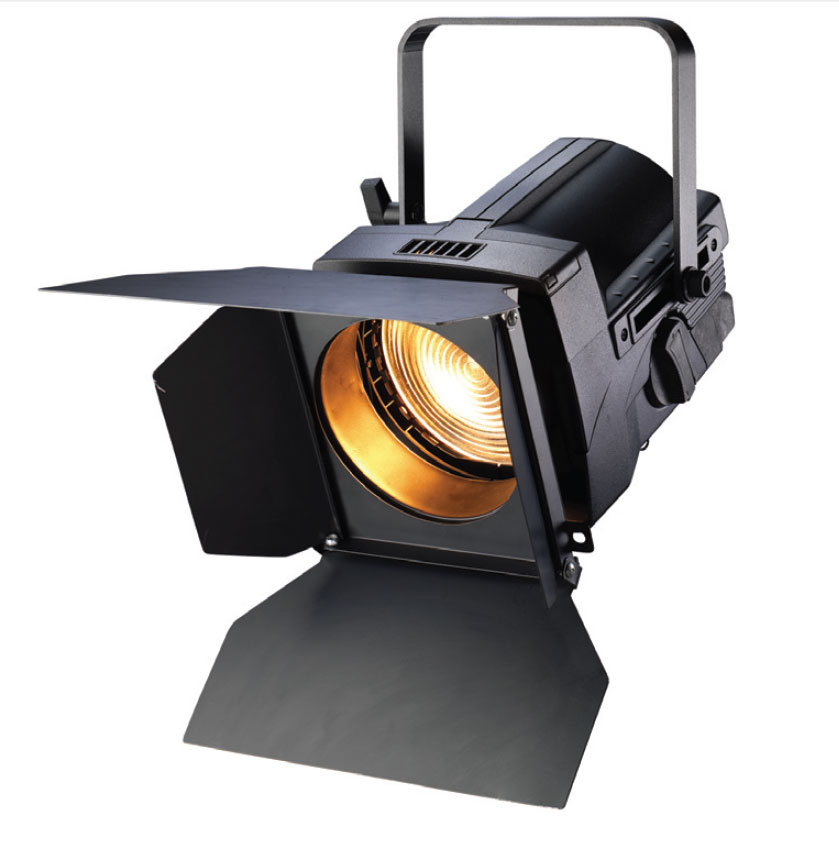

ETC/Elec Theatre Controls FRES7
7" Source Four Fresnel, Black

OUR PART #  FRES7

Our Price: $348.60
List Price: $415.00
You save 16%! (Low Price Guarantee)
In Stock

Recommended Accessories

ETC combines the efficiency of the HPL lamp with the singular optical qualities of the fresnel optical system to create the truly advanced ETC Source Four Fresnel. Traditional fresnel optics provide a unique quality of blending wash light and beam shaping via barn doors for well-defined, soft-edged area lighting. The Source Four Fresnel combines this classic system with a unique reflector design enabling the HPL 750W-equipped Source Four Fresnel to equal the lumen output of other 1000W fresnel fixtures. Spot-to-flood focus is accomplished by large, easy-to-use knob for quick adjustments in inconvenient positions. The unique Quick Xchange socket design permits re-lamping from underneath the fixture without breaking focus in most situations.

ETC FRES7 Specifications:

PHYSICAL

  • Rugged die-cast aluminum construction
  • Convenient full-size zoom adjustment knob
  • Unique HPL quick exchange socket enables easy lamp changes
  • Sliding yoke mount for variable balance points
  • Fully enclosed accessory slots for no light leak
  • UL and cUL listed

ELECTRICAL

  • 100V-240V, 50/60Hz
  • High temperature three-conductor 36" leads in a glass fiber outer sleeve
  • Supports ETC Dimmer Doubling™ technology

OPTICAL

  • 7”/175mm aperture
  • 20° - 65° field angle zoom range
  • True fresnel optical system for good barn-door beam shaping performance
  • Glass reflector with dichroic coating optimized for HPL performance

LAMP

  • HPL – compact tungsten filament contained in akrypton/xenon-filled quartz glass envelope (see table for suitable lamp types)
  • Uses same lamp as all Source Four fixtures for common inventory
  • 750W maximum
  • Patented filament geometry makes for extremely efficient light collection and transmission
  • Integral die-cast aluminum heat sink lamp base
