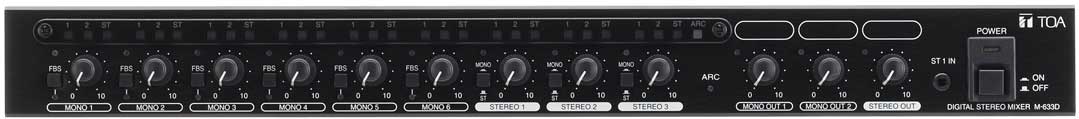

TOA M-633D CU Rackmountable Digital Stereo Mixer, 6 Mono / 3 Stereo Inputs

With just the touch of a button, the M-633D automatically eliminates unpleasant reverberation and feedback to deliver clear, highly articulate sound. This new-concept digital stereo mixer is next-generation unique. It provides automatic audio adjustment with push-button ease. You don't have to be a sound technician to operate the M-633D, and there's no need for complex PC settings. It features Automatic Resonance Control Function, which suppresses feedback, and an automatic Clipguard function add enhanced sound intelligibility.

Features:

• Automatic Resonance Control
• Feedback Suppressor
• Automatic Clipguard

Specifications:

• Input
  • 6 monaural input channels, switchable LINE, MIC or PHANTOM: LINE = -10dB, 2.4kΩ / MIC = -46dB, 2.4kΩ / PHANTOM = -46dB, 2.4kΩ, +24VDC, electronically balanced / removeable terminal block (3 pins), phone jack
  • 3 stereo inputs (L,R): -10dB / 10kΩ, RCA jack, stereo mini jack
• Output
  • 2 monaural outputs (0dB, electronically balanced, removable terminal block (3pins))
  • 1 stereo output (0dB, electronically balanced, removable terminal block (3pins))
  • 1 stereo recording outout (-10dB, RCA jack)
• Signal Processing
  • Automatic Resonance Control (ARC)
  • Feedback Suppressor (FBS)
  • Automatic Clipguard (ACG)
  • Automatic Mute
• General
  • Bus Line: Monaural channel x 2, stereo channel x 1
  • Frequency Response: 20Hz - 20kHz
  • Sampling Frequency: 48kHz / 24-bits
  • Dynamic Range: 90dB or more (IHF-A weighted)
