Marshall Electronics V-R35P-SDI
10x 3.5" LCD Screens Rack-Mounted Panel with SDI Inputs

OUR PART #:  V-R35P-SDI

Marshall Electronics' V-R35P-SDI is a rack-mounted unit that has ten 3.5" active matrix LCD panels and accepts SDI inputs (ITU-R601) with reclocked loop-through capability.
Learn More
Our Price: $3,990.00
List Price: $4,695.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-R35P-SDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

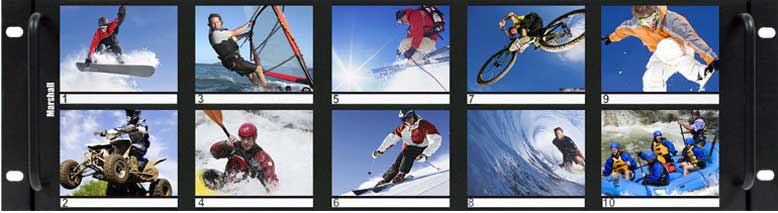

Marshall Electronics' V-R35P-SDI is a rack-mounted unit that has ten 3.5" active matrix LCD panels and accepts SDI inputs (ITU-R601) with reclocked loop-through capability.  This unit has a unique feature that allows the unit to tilt up or down for optimum viewing angle.  The unit fits in an EIA standard 19" rack -- 3RU high.  Each of the 10 screens has auto-signal recognition and auto PAL/NTSC recognition built-in.  A blue screen will appear in the event of a signal loss.  The V-R35P-SDI comes complete with a power supply.

Features:

  • High Resolution 320 × 234 pixels
  • Self-Terminated SDI Inputs with active loop-through
  • Automatic NTSC/PAL Video Signal Detection screen
  • 90 degree tilt adjustment while mounted in rack
  • Based off the successful and award-winning V-R25P LCD rack

Specifications:

  • Display (Viewing Area): 3.5" (.81" × 1.56")
  • Resolution (Pixels): 320 H × 234 V
  • Dot Pitch: 0.105mm × 0.161mm
  • Brightness (in cd/m²): 250
  • System: NTSC/PAL auto recognition
  • Inputs per panel (total): 1(10) - SDI with reclocked loop-through
  • Dimensions: 18.96" W × 5.2" H × 2.5" D
  • Approx. Weight: 5 lbs
  • Power Consumption: 12 VDC, 3.0 Amps
