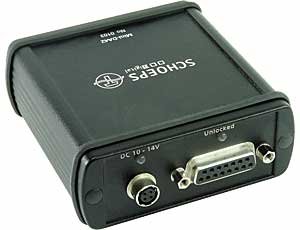

Schoeps MINI-DA42
Powering Box, AES42

OUR PART #  MINI-DA42

Our Price: $549.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The MINI-DA42 serves for powering digital microphones (especially the SuperCMIT) and for converting their output signals to analog. It allows you to use digital microphones with devices which only accept analog inputs.

Inputs: AES42, Mode 1 (XLR-3F, 110 Ohms, black label)

Outputs (available through included Sub-D breakout cable): - AES3 (XLR-3M, 110 Ohms, blue label), 2 x analog (XLR-3M, yellow and red label), balanced, referring to ground, maximum cable length: 300m)

Indicators: Green LED for power, red LED for "unlocked" (turns off when a digital microphone is connected and the circuitry of the MINI-DA42 locks on to that signal).

Power: DC 12-18V / 200-500 mA, available through included AC adapter for 100-240V, 50/60Hz with HIROSE plug.

Dynamic Range: 112dB (A, RMS), >98dB (CCIR, q-peak)



FEATURES

  • Powers digital microphones
  • Digital and analog outputs
  • Inputs and outputs are available through a Sub-D breakout cable
  • All connectors are on the front side

SPECIFICATIONS

  • Sampling Rate: 192kHz max
  • Dynamic Range: 112dB (A, RMS), >98dB (CCIR, q-peak)
  • Frequency Range: 2Hz - 20kHz (-1dB)
  • THD+N: -95dB @ 1kHz
  • Max. Output Level: 14.5dBu @ 0 dBFS
  • Current Consumption: 200mA (SuperCMIT included)
  • Dimensions: 3.3" x 3.3" x 1.3"



Schoeps MINI-DA42
Powering Box, AES42

OUR PART #  MINI-DA42

Product Information:

The MINI-DA42 serves for powering digital microphones (especially the SuperCMIT) and for converting their output signals to analog. It allows you to use digital microphones with devices which only accept analog inputs.

Inputs: AES42, Mode 1 (XLR-3F, 110 Ohms, black label)

Outputs (available through included Sub-D breakout cable): - AES3 (XLR-3M, 110 Ohms, blue label), 2 x analog (XLR-3M, yellow and red label), balanced, referring to ground, maximum cable length: 300m)

Indicators: Green LED for power, red LED for "unlocked" (turns off when a digital microphone is connected and the circuitry of the MINI-DA42 locks on to that signal).

Power: DC 12-18V / 200-500 mA, available through included AC adapter for 100-240V, 50/60Hz with HIROSE plug.

Dynamic Range: 112dB (A, RMS), >98dB (CCIR, q-peak)



FEATURES

  • Powers digital microphones
  • Digital and analog outputs
  • Inputs and outputs are available through a Sub-D breakout cable
  • All connectors are on the front side

SPECIFICATIONS

  • Sampling Rate: 192kHz max
  • Dynamic Range: 112dB (A, RMS), >98dB (CCIR, q-peak)
  • Frequency Range: 2Hz - 20kHz (-1dB)
  • THD+N: -95dB @ 1kHz
  • Max. Output Level: 14.5dBu @ 0 dBFS
  • Current Consumption: 200mA (SuperCMIT included)
  • Dimensions: 3.3" x 3.3" x 1.3"
