Product Overview
The Shure VP89S is the shortest in the VP89 series of professional shotgun condenser microphones for use in critical broadcast and media production applications.

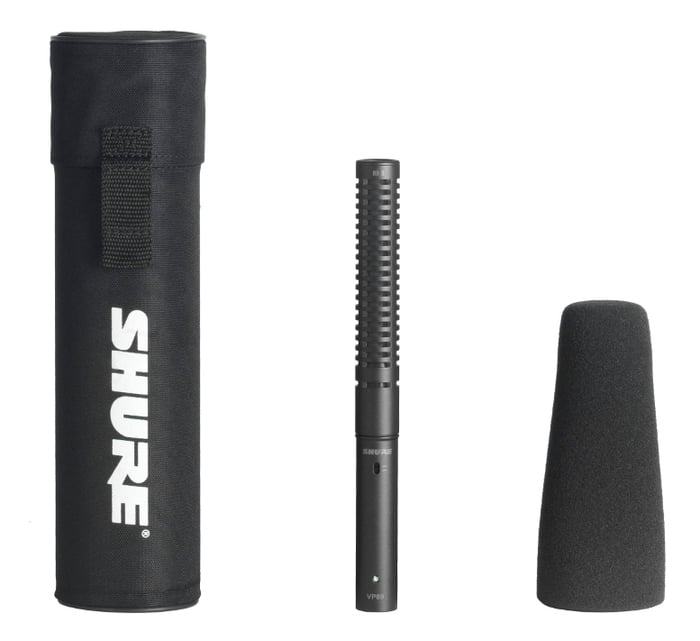

Designed with interchangeable long, short and medium capsules, the VP89 models provide scalable, superior off-axis rejection for focus and flexibility in a wide variety of on-site locations. Carrying case and foam windscreen included.
Shure VP89S Features:
- Updated Technology
- State-of-the-art preamplifier redesign
- Superior RF immunity
- Internal low-frequency roll-off
- Recessed low-cut filter switch for additional control
- Smaller footprint
- Superior Shure design and rugged, roadworthy construction
- Short Length Cartridge/Barrel Housing
- High volume, widest aperture for greatest degree of ambience in near-field target range (camera mounting, discrete mounting)
- Widest pickup angle
- Unmatched quality of off-axis rejection
Shure VP89S Specifications:
- Cartridge Type: Electret Condenser
- Polar Pattern: Hypercardioid / Lobar
- Frequency Response: 140 - 20kHz
- Output Impedance: 115 Ohms
- Sensitivity (open circuit voltage at 1kHz, typical): -33.5dBV/Pa (2.11mV)
- Maximum SPL (1kHz at 1% THD): 2500 Ohm load = 132dB SPL // 1000 Ohm load: 128.5 dB SPL
- Signal-to-Noise Ratio: 79dB
- Dynamic Range (at 1kHz): 2500 Ohm load = 117dB // 1000 Ohm load= 113.5dB
- Clipping Level (at 1 kHz, 1% THD): 2500 Ohm load= 4.0dBV // 1000 Ohm load = 0.0dBV
- Self Noise (equivalent SPL, A-weighted, typical): 15.0dB
- Common Mode Rejection: 20Hz - 20kHz > 70dB
- Low-Frequency Filter Switch: -12dB / octave below specified frequency
- Flat Response: 100Hz
- Low Frequency Roll-off: 200Hz
- Operating Temperature Range: 0° - 135°F
- Storage Temperature Range: -20° - 165°F
- Operating Relative Humidity: 0 to 95%
- Polarity: Positive pressure on diaphragm produces positive voltage on pin2 with respect to pin 3
- Housing: Charcoal-gray metallic painted aluminum allow handle and grille with stainless steel screen
- Power Requirements: 11-52VDC phantom power (IEC-61938),
- Length: 5.41"
- Net Weight: 4.1oz
