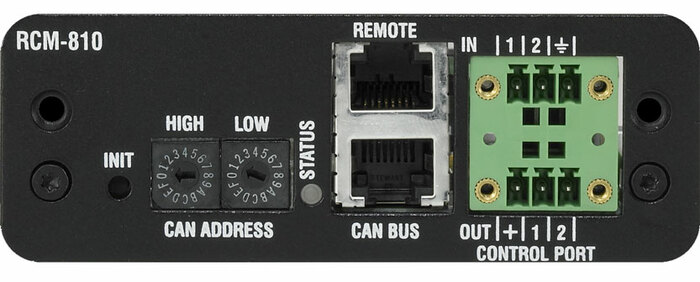

Electro-Voice RCM-810
Remote Control Module for Power Amps

OUR PART #:  RCM-810

The Electro-Voice RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers.
Learn More
Our Price: $381.00
Write the first review.
Electro-Voice RCM-810
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Electro-Voice RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs.

Electro-Voice RCM-810 Features:

  • Control/Configuration:
    • Power ON/OFF
    • Power On Delay
    • Mute
    • Control Inputs/Outputs
  • Supervision/Status indicators:
    • Load supervision for each amplifier channel
    • Output VU
    • Protect
    • Limit
    • Pilot tone
    • Temperature
    • Gain/Sensitivity
    • Control Inputs/Outputs

Electro-Voice RCM-810 Specifications:

  • Remote Control and Software: IRIS-Net, Multiple PCs possible, MS Windows2000/XP/Vista
  • Max Configuration: 250 Amplifiers in total, 100 Amplifiers per CAN bus,1000 meter cable run
  • Supply Voltage/Current:
    • +5V DC/320mA
    • +15V DC/80 mA
    • -15V DC/80 mA
  • Power Consumption: 4W
  • Operating Temp Range: 32°F- 104°F
  • Dimensions (WxHxD): 4.07" x 1.46" x 4.07"
  • Weight: 0.25lbs
