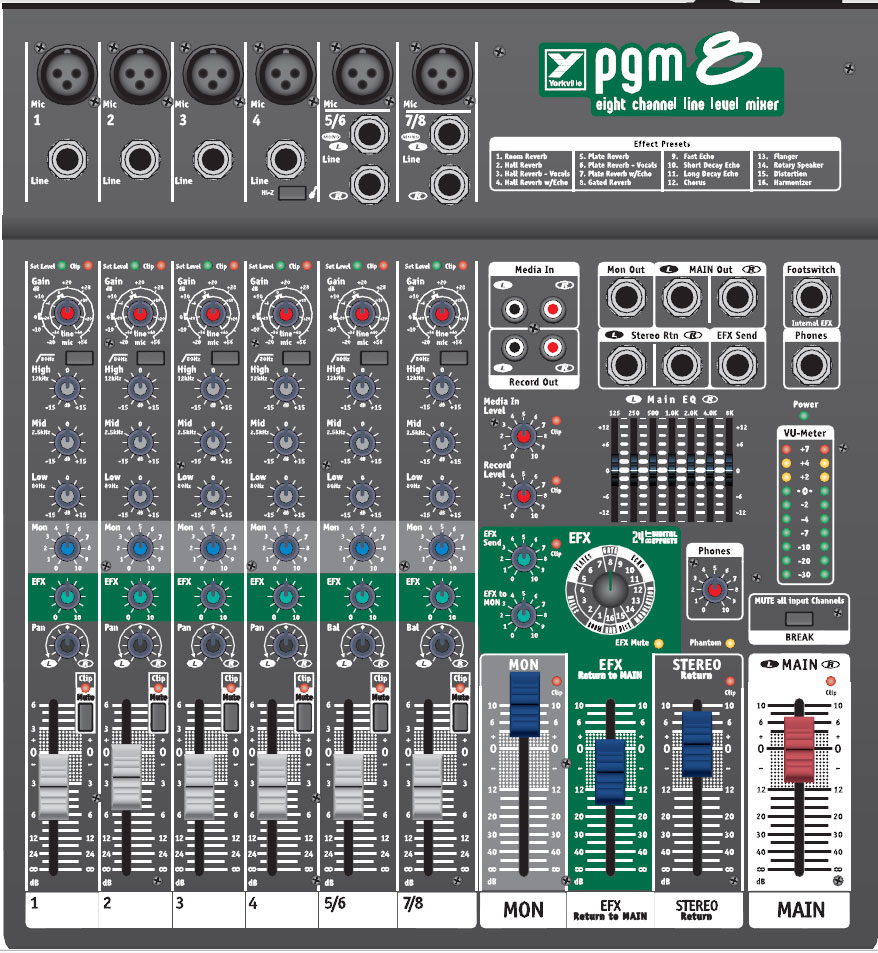

Yorkville PGM8 8-Channel Compact Mixer

The Yorkville PGM8 delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, fully featured input channel design, 24-bit digital effects and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

FEATURES

• Four mono input channels with XLR & 1/4" TRS inputs
• Channel 4 mono input has a Hi-Z input switch
• Two additional stereo line input channels (5/6 and 7/8)
• Additional XLR mono input per stereo channel for maximum 6 mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ, High Pass Filter, Monitor Send, Effect Send, Clip LED, Mute Switch and Pan Control per channel
• 60mm faders throughout
• Global 48V phantom power
• 7-band stereo graphic EQ on main outs
• Stereo RCA Record Outputs with Level Control
• BREAK switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch)
• Monitor TRS Output
• Main stereo TRS phone and XLR outputs
• Sixteen 24-bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Stereo Headphone Output Jack (signal strong enough to drive 8 ohm speakers)
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adapters)
• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz
